BARTEC BCS3608ex-IS corded hand-held scanner for ATEX Zone 1/21 with Zebra SE4750-HP imager for 1D/2D barcodes, OCR and photos.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

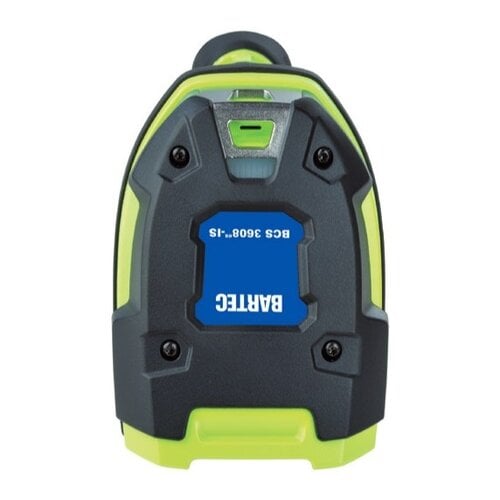

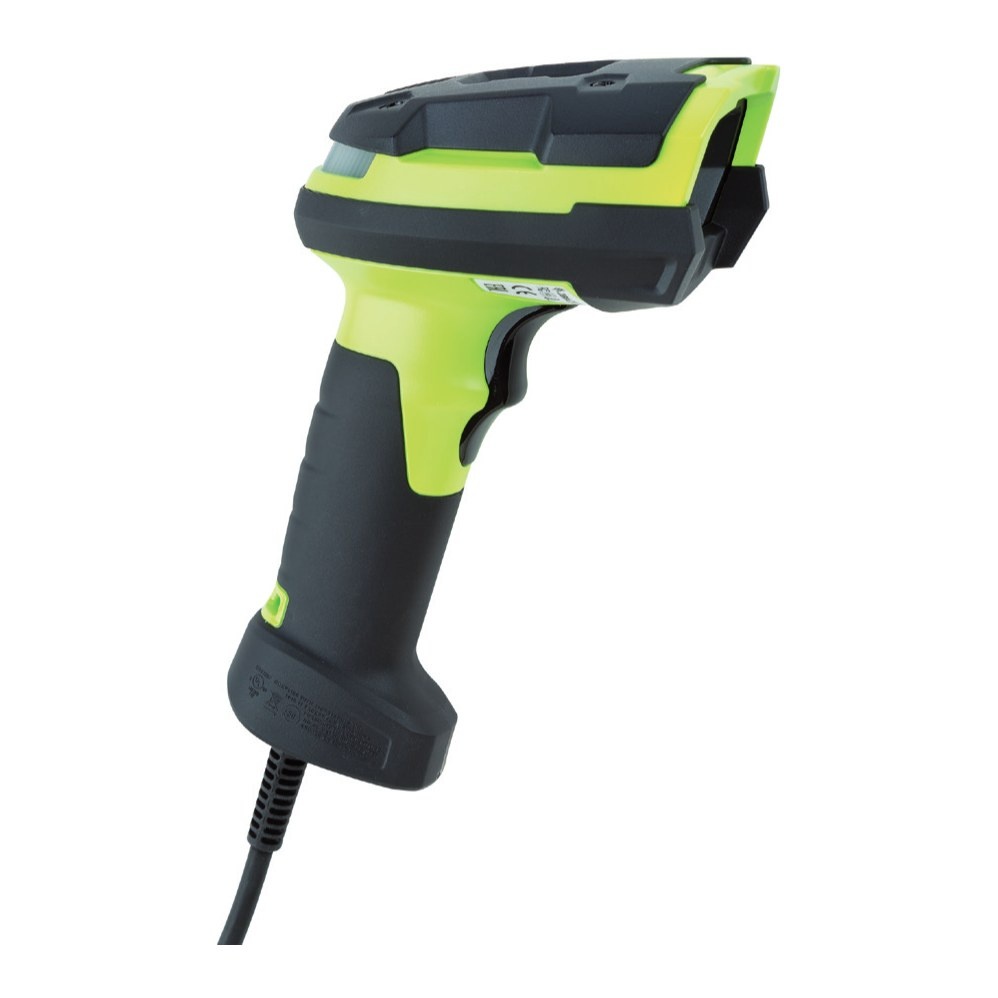

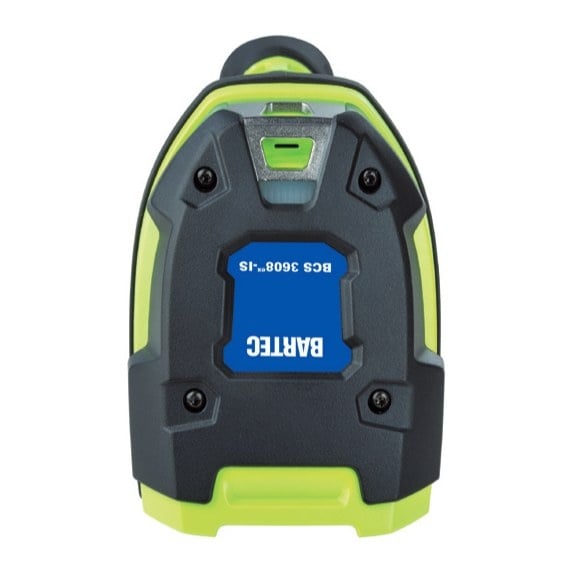

The BARTEC BCS3608ex-IS is an ultra-rugged corded hand-held scanner for hazardous areas. It is based on the Zebra DS3608-HP and approved for ATEX/IECEx/UKEX Zone 1/21.

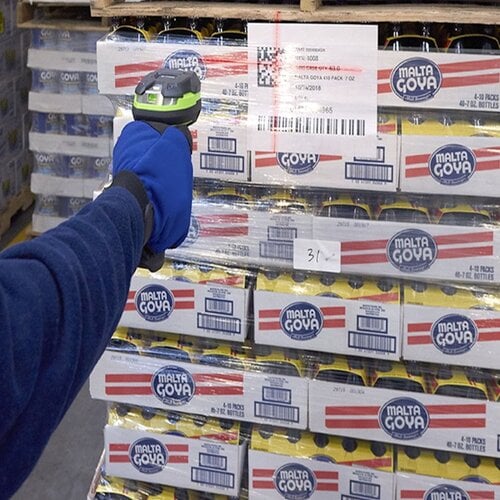

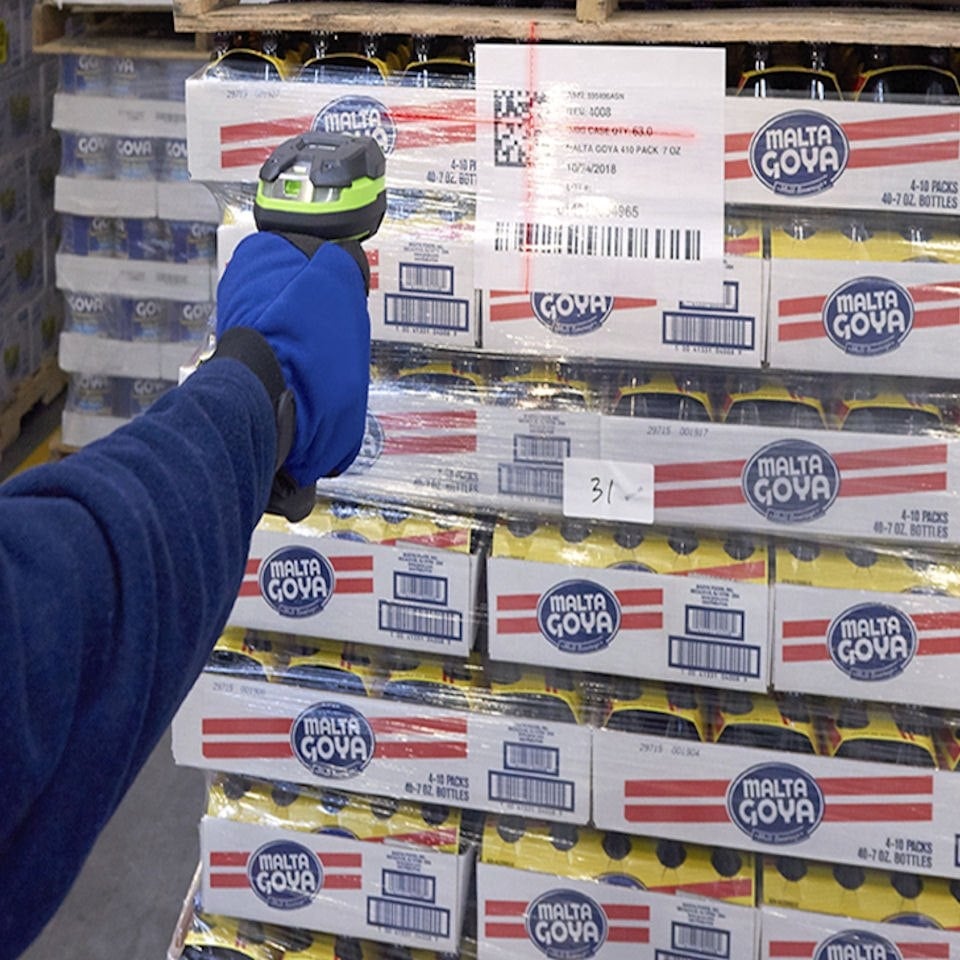

The SE4750-HP imager reads virtually any 1D and 2D barcode, even when damaged, dirty, poorly printed or under shrink wrap. It also captures OCR, photos and documents. With Multi-Code Data Formatting you capture up to 20 barcodes with one trigger pull.

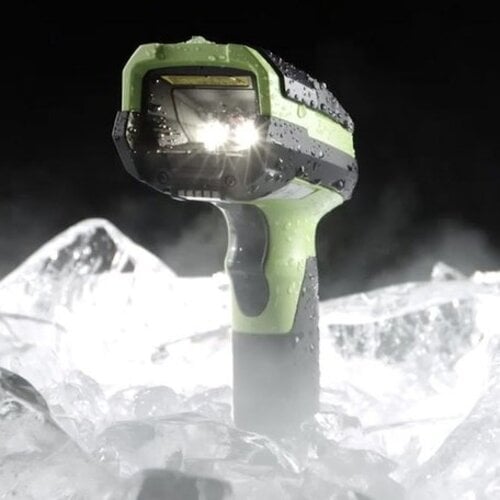

The scanner is dust and water proof to IP65 and survives multiple 3 m drops to concrete and 7,500 tumbles from 1 m. Zebra's free 123Scan and Scanner Management Service tools let you configure the scanner and update firmware.
The BCS3608ex-IS is ideal for fixed workstations. It connects to the universal supply module (corded), which provides intrinsically safe power and data communication (RS232, RS422, RS485 or USB) to your system.
Please note: Operation requires a universal supply module (corded) and a connection cable. These are not included.
Technical specifications
| Specification | Value |
| ATEX marking | II 1G Ex ia ma op is IIC T4 Ga II 1D Ex ia ma op is IIIC T135°C Da IP 64 |
| ATEX certificate | EPS 18 ATEX 1 199 X |
| IECEx | IECEx EPS 18.0100X |
| Zones | Zone 1 (gas) and Zone 21 (dust) |
| Part number | 17-A1S4-1HP0 |
| Scan engine | Zebra SE4750-HP 1D/2D high performance imager, omnidirectional |
| Functions | 1D/2D barcodes, postal codes, OCR, photos and documents, up to 20 barcodes at once (MDF) |
| Connection | Via universal supply module (RS232 TTL to module; module: RS232, RS422, RS485, USB) |
| Power | Via BARTEC universal supply module (approx. 8.2 V, max. 2.06 W) |
| Ingress protection | IP65 |
| Drop test | Multiple 3 m drops to concrete, 7,500 tumbles from 1 m |
| Operating temperature | -20 °C to +50 °C |
| Dimensions (h x w x d) | 185 x 76 x 132 mm |
| Weight | approx. 382 g (without cable) |
| Colour | Industrial green |
| Software | Zebra 123Scan, Scanner Management Service (SMS), DataCapture DNA |
| Warranty | 1 year on the scanner, 6 months on accessories |
Benefits
- ATEX/IECEx/UKEX Zone 1/21
- Based on the proven Zebra DS36x8-HP
- Reads damaged and dirty barcodes first time
- Also OCR, photos and documents
- Up to 20 barcodes with one trigger pull (MDF)
- IP65, 3 m drop rated, 7,500 tumbles
- Fixed cable, no battery to run flat
- Managed with free Zebra 123Scan and SMS
About BARTEC
BARTEC is a German specialist in explosion protection and has supplied equipment for hazardous areas for decades. For its mobile range BARTEC works with Zebra Technologies: proven Zebra technology, adapted and certified by BARTEC for ATEX zones. More information is available at bartec.com.
Package contents
- BARTEC BCS3608ex-IS hand-held scanner
- Quick Start Guide (EN)
Contact us for a quote, availability or technical advice via +31 (0)115 648 506 or [email protected].
| ATEX Zone | Zone 1, Zone 21 |
| ATEX certification | EPS 18 ATEX 1 199 X |
| ATEX certification gas | II 1G Ex ia ma op is IIC T4 Ga |
| ATEX certification Dust | II 1D Ex ia ma op is IIIC T135°C Da IP 64 |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 18.0100X |
| IECEx certification dust | Ex ia ma op is IIIC T135°C Da IP 64 |
| IECEx certification gas | Ex ia ma op is IIC T4 Ga |
| IECEx certification mining | - |
| Ingress Protection | IP65 |
| Operating System | - |
| scanning distance (m) | - |
| scanning technology | Zebra SE4750-HP 1D/2D imager (also OCR, photo and document) |
| Height (mm) | 185 |
| Width (mm) | 76 |
| Thickness (mm) | 132 |
| Weight | approx. 382 g (without cable) |
| Factory warranty | 1 year (BARTEC) |
