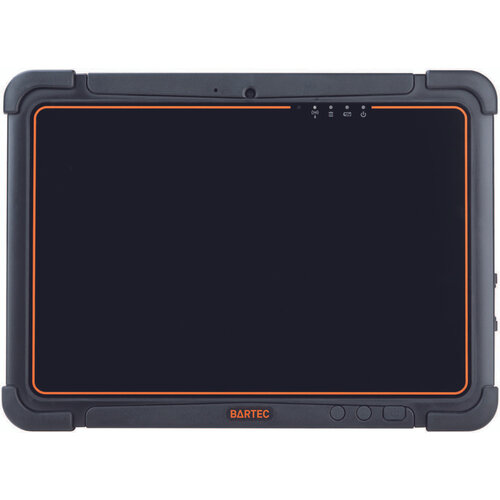

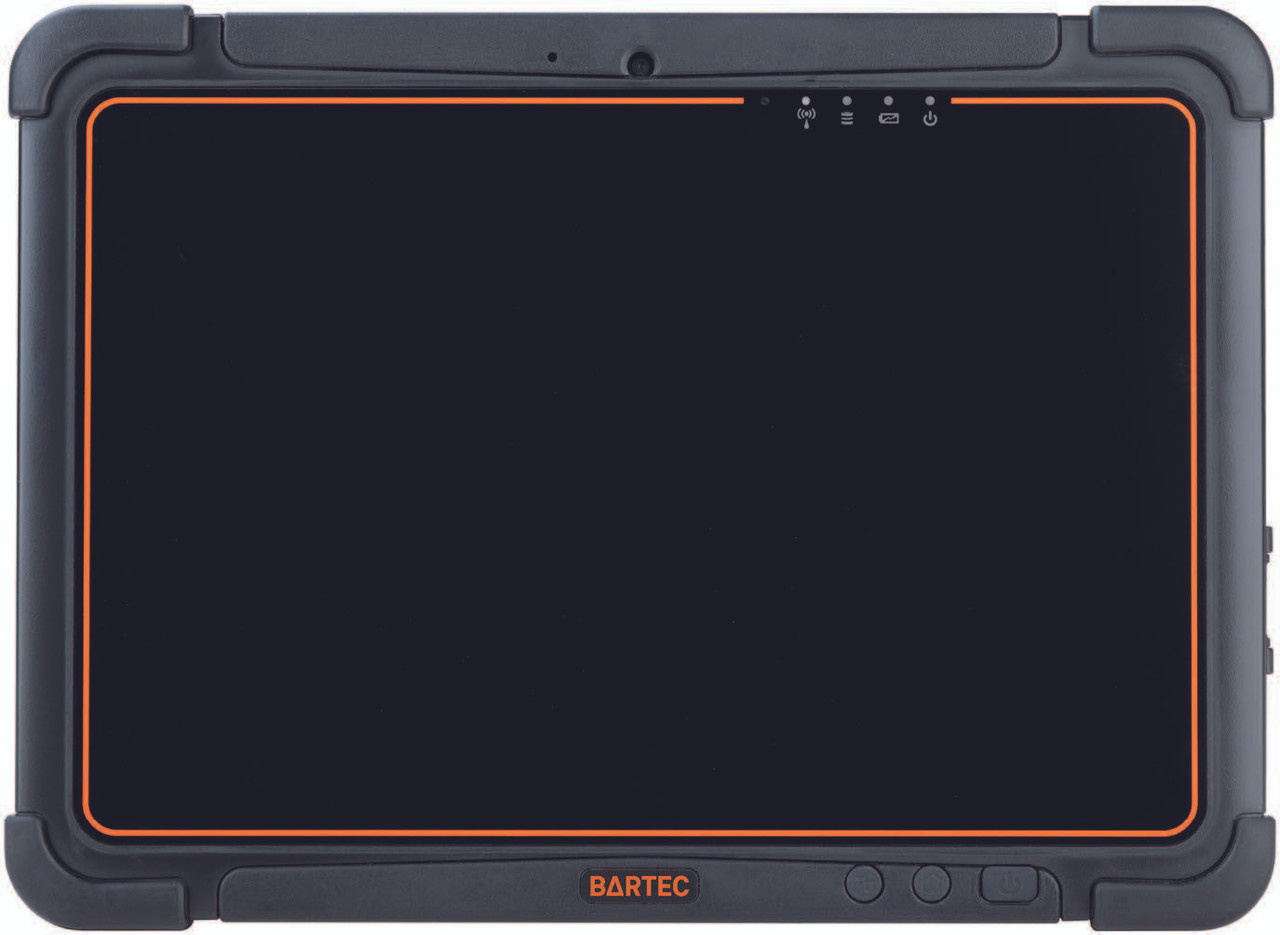

Rugged and highly flexible industry Windows tablet PC 10.1”
The Agile S NI from BARTEC is a rugged and highly versatile industrial tablet PC for harsh environments. The Agile S NI has a wide range of both global and regional certifications and can be used anywhere in the world. It is certified for ATEX and IECEx Zone 2/22 and for UL Class I Div. 2. Further national certifications are possible upon customer request. Thanks to its wide range of functions, the Agile S NI is the perfect assistant for service technicians, operating personnel, engineers and project managers in the field and in industry.
| Dimensions | 271.8 mm x 197.2 mm x 21mm (10.7 inch x 7.76 inch x 0.83 inch) |
| Weight | 1.2 kg (2,56 lb) |
| Operating system | Windows 10 IoT Enterprise LTSC |
| CPU | Intel Core i5 |
| Battery | Lithium-Polymer-Akku 7,4 V/5140 mAh (38,04 Wh) 330mAh internal battery to facilitate hot-swapping |
| Network specifications | WLAN: IEEE802.11 a/b/g/n/ac Bluetooth: BT 5.0 |
| Memory (RAM) | 16 GB |
| Mass storage | 256 GB |
| barcode capture | 1D/2D Imager Honeywell N6600** |
| Screen | 1920 x 1200 pixel, WUXGA 800 cd/m² |
This tablet is custom made for you and cannot be cancelled or returned.
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 19 ATEX 1 179 X |
| ATEX certification gas | Ex ll 3G EX ic llC T4 Gc |
| ATEX certification Dust | Ex II 3D Ex ic IIIB T130°C Dc |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 19.0079X |
| IECEx certification gas | EX ic llC T4 Gc |
| IECEx certification dust | Ex ic IIIB T130°C Dc |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810G |
| Type of device | ATEX Tablet |
| Ingress Protection | IP65 |
| Operating system | Windows 10 IoT Enterprise LTSC (64 bit) |
| Processor | Intel Core i5-7300U Kaby Lake, 2.6 GHz (turbo up to 3.5 GHz) |
| Memory | 256 GB mSATA MLC SSD |
| Screensize | 10.1 inch |
| Display resolution | 1920 x 1200 |
| Touchscreen | Corning Gorilla Glass, capacitive multi-touch, usable with gloves or stylus |
| Camera | 8 MP autofocus with LED flash, front camera 2 MP |
| Mobile connectivity | 4G (optional) |
| Frequencies | LTE Cat-6 FDD (B1/B3/B7/B8/B20), LTE TDD (B38/B40/B41) (optional) |
| Battery Capacity | 5,140 mAh (replaceable) + 330 mAh hot-swap integrated |
| Bluetooth | 5.0 |
| Wifi | Wi-Fi 5 (802.11 a/b/g/n/ac), 2,4 GHz + 5 GHz |
| Barcode reader | 1D/2D imager Honeywell N6600 |
| GPS | GPS, QZSS, GLONASS, BeiDou, Galileo |
| Programmable keys | Yes |
| Height (mm) | 271,8 mm |
| Width (mm) | 197,2 mm |
| Thickness (mm) | 21 mm |
| Weight with batteries (gram) | 1.200 g |
| Factory warranty | 1 year (BARTEC) |
