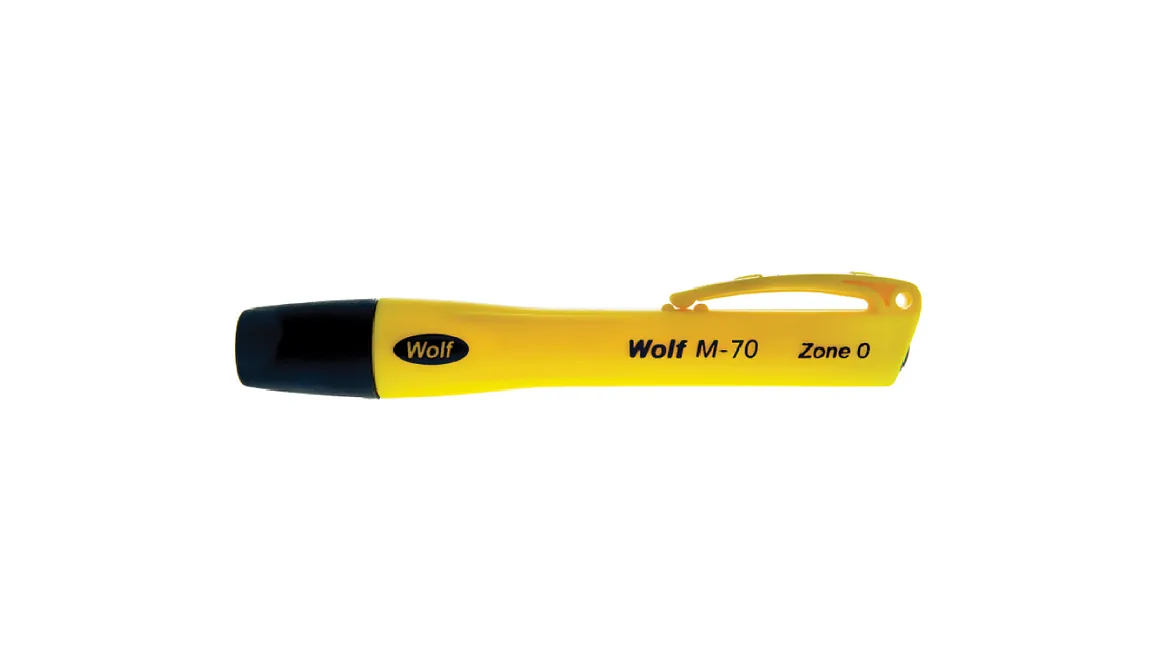

Compact ATEX mini torch with 107 lm, IP67, full Ex marking and certified safety for hazardous gas and dust zones.
The Wolf M‑70 Mini provides intrinsically safe lighting for hazardous environments requiring Zone 0/20 protection. Its 107 lm output from a high‑power LED enables accurate inspection tasks in confined or demanding spaces. The housing consists of impact‑resistant thermoplastic, supported by a recessed polycarbonate lens for additional durability. An IP67 rating ensures protection against dust ingress and temporary water immersion. The lamp operates safely in gas zones under the Ex ia IIC T4 Ga marking and is also approved for dust zones under Ex ia IIIC T200 160°C Da. With a runtime of up to 7 hours, the torch supports extended operational periods. The ergonomic design ensures comfortable handling during frequent use. The integrated pocket clip and guarded switch help prevent accidental activation. Its compact form makes the M‑70 suitable for daily industrial use in hazardous areas.
Technical specifications (table)
| Specification | Value |
|---|---|
| ATEX zone | Zone 0/20 |
| ATEX certificate | I M1/II 1GD |
| IECEx certificate | IECEx BAS 06.0023 |
| ATEX marking | Ex ia IIC T4 Ga, Ex ia IIIC T200 160°C Da |
| IP rating | IP67 |
| Housing material | Impact‑resistant thermoplastic |
| Lens material | Polycarbonate |
| Dimensions | 22 mm × 146 mm × 27 mm |
| Weight | 50 g including batteries |
| Temperature range | −20 °C to +40 °C |
| Light source | High‑power Cree LED |
| Lumen output | 107 lm |
| Beam type | Medium Spot |
| Runtime | Up to 7 hours |
| Batteries | 2× LR03 (AAA) |
Benefits
- Full intrinsic safety marking for gas and dust zones.
- 107 lm LED output for clear visibility.
- IP67 protection ensures suitability for harsh environments.
- Durable construction with impact‑resistant materials.
- Runtime up to 7 hours for uninterrupted operation.
Manufacturer overview
Wolf Safety designs and manufactures explosion‑protected lighting intended for demanding industrial conditions. The company provides robust portable solutions compliant with ATEX and IECEx requirements.
Box contents
- Wolf M‑70 Mini torch
- LR03 (AAA) batteries
- Integrated pocket clip
Contact us for technical advice or a quotation.
| ATEX Zone | Zone 0, Zone 20 |
| ATEX certification | I M1 / II 1GD |
| ATEX certification gas | Ex ia IIC T4 Ga |
| ATEX certification Dust | Ex ia IIIC T200 160°C Da |
| ATEX certification mining | Ex ia I Ma |
| IECEx Certification | IECEx BAS 06.0023 |
| IECEx certification gas | Ex ia IIC T4 Ga |
| IECEx certification dust | Ex ia IIIC T200 160°C Da |
| IECEx certification mining | Ex ia I Ma |
| Ingress Protection | IP67 |
| Light source | High‑power Cree LED |
| Light output (lm) | 107 lm |
| Beam distance (m) | 2.5 m |
| Peak beam intensity (cd) | 500 cd |
| Color temperature | - |
| Runtime (hh:mm) | 7:00 h |
| Rechargeable | No |
| Charge time (hh:mm) | - |
| Battery Type | 2× LR03 (AAA) |
| Housing material | - |
| Lens material | Polycarbonate |
| Height (mm) | 146 mm |
| Thickness (mm) | 22 mm |
| Width (mm) | 27 mm |
| Diameter (mm) | |
| Weight with batteries (gram) | 50 g |
| Factory warranty | - |
