ATEX‑certified LED handlamp with 269 lm, IP66 protection and up to 45 hours runtime, suitable for safe Zone 1/21 use.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

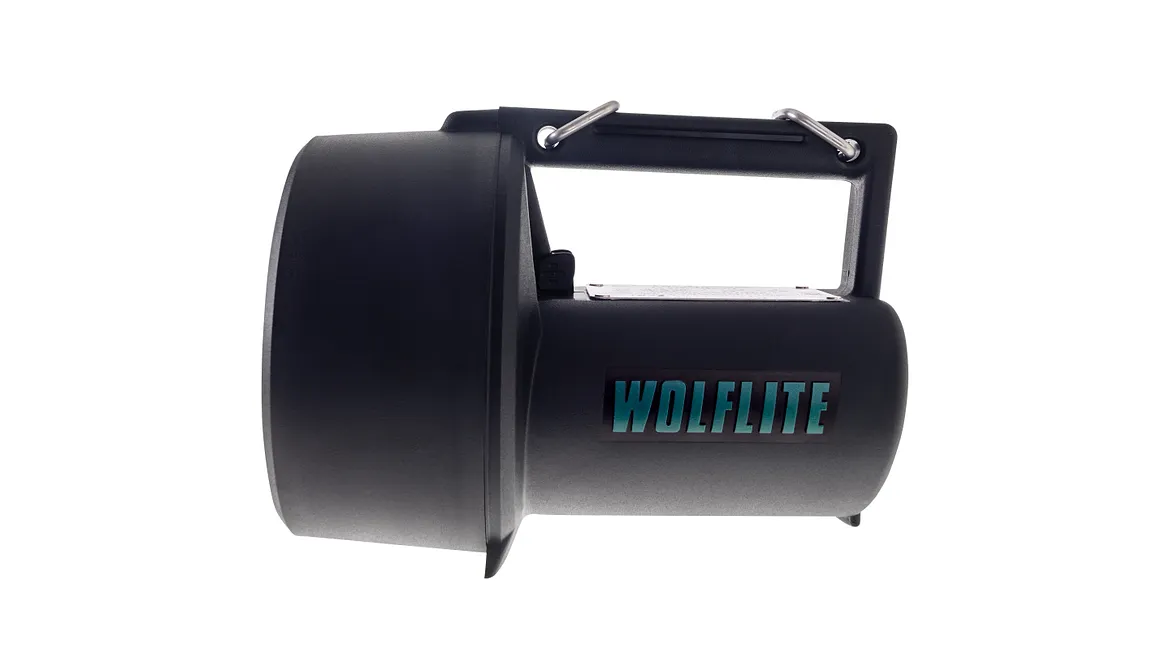

The Wolf H‑4DCALED is a primary cell powered LED handlamp engineered for reliable operation in ATEX Zone 1/21 hazardous locations. Its two part LED module produces 269 lm and forms a focused 4 degree spot beam ideal for inspection tasks. The enclosure is constructed from anti static thermoplastic material designed to withstand demanding industrial conditions. The lamp is certified with Ex ib IIC T4 Gb and Ex ib IIIB T135°C Db for safe deployment in gas and dust atmospheres. The H‑4DCALED provides up to 45 hours of runtime using four LR20 primary cells. The 6 mm toughened glass lens ensures optical stability and strong impact resistance. The IP66 ingress protection rating safeguards the lamp against dust and water. Dimensions of 188 mm × 140 mm × 132 mm provide an ergonomic and balanced form factor. The lamp remains operational from −10°C to +40°C, enabling wide environmental usability. The detachable shoulder strap enhances comfort during extended use.
Technical specifications
| Specification | Value |
|---|---|
| ATEX zone | Zone 1/21 |
| ATEX certificate | BAS00ATEX2176 Issue 11 |
| IECEx certificate | IECEx BAS 16.0076 Issue 2 |
| ATEX marking | Ex ib IIC T4 Gb, Ex ib IIIB T135°C Db |
| IECEx marking | Ex ib IIC T4 Gb, Ex ib IIIB T135°C Db |
| IP rating | IP66 |
| Housing material | Anti static thermoplastic |
| Lens material | 6 mm toughened glass |
| Dimensions | 188 mm × 140 mm × 132 mm |
| Weight | 1.54 kg including batteries |
| Temperature range | −10°C to +40°C |
| Light source | Wolf LED H‑84 module |
| Lumen output | 269 lm |
| Beam | Spot, approx. 4° |
| Peak intensity | 695 lux at 5 m |
| Battery type | 4× LR20/R20 |
| Runtime | Up to 45 hours |
Benefits
- 269 lm output for high visibility in hazardous areas.
- Complete ATEX and IECEx certification for gas and dust zones.
- IP66 enclosure for harsh industrial environments.
- Strong 6 mm toughened glass lens.
- Long runtime up to 45 hours on primary cells.
Manufacturer overview
Wolf Safety designs and manufactures explosion protected portable lighting solutions for hazardous industrial conditions. The company provides internationally certified ATEX and IECEx equipment known for long term durability and reliability.
Box contents
- Wolf H‑4DCALED handlamp
- Shoulder strap
Contact us for technical advice or a quotation.
| ATEX Zone | Zone 1, Zone 21 |
| ATEX certification | BAS00ATEX2176 Issue 11 |
| ATEX certification gas | Ex ib IIC T4 Gb |
| ATEX certification Dust | Ex ib IIIB T135°C Db |
| ATEX certification mining | - |
| IECEx Certification | IECEx BAS 16.0076 Issue 2 |
| IECEx certification gas | Ex ib IIC T4 Gb |
| IECEx certification dust | Ex ib IIIB T135°C Db |
| IECEx certification mining | - |
| Ingress Protection | IP66 |
| Light source | Two-Part LED Module |
| Light output (lm) | 269 lm |
| Beam distance (m) | - |
| Peak beam intensity (cd) | 695 cd at 5 m |
| Color temperature | - |
| Runtime (hh:mm) | 45 hours |
| Rechargeable | No |
| Charge time (hh:mm) | - |
| Battery Type | 4× LR20/R20 |
| Housing material | Anti static thermoplastic |
| Lens material | - |
| Height (mm) | 140 mm |
| Thickness (mm) | 132 mm |
| Width (mm) | 188 mm |
| Diameter (mm) | |
| Weight with batteries (gram) | 1540 g |
| Factory warranty | - |
