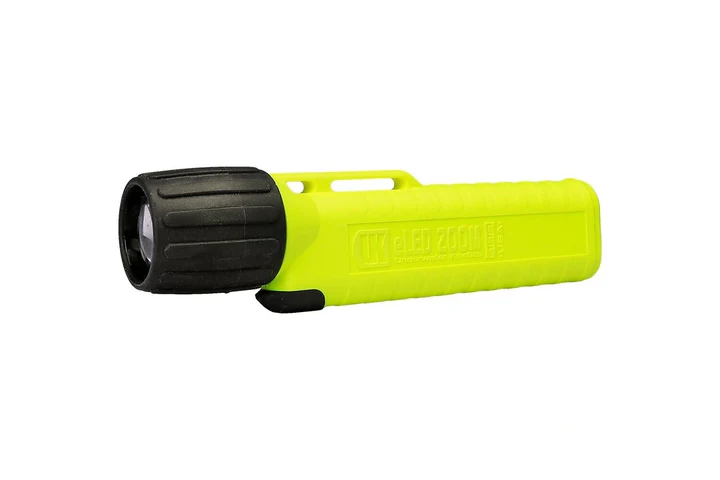

UK Underwater Kinetics 4AA eLED ZOOM Front Switch - yellow - ATEX - Flashlight - Zone 0/20
ATEX certified flashlight with adjustable beam, 165 lm output, IP67 sealing and impact resistant ABS polycarbonate housing for safe use in Zone 0/20 environments. Read more
The UK Underwater Kinetics 4AA eLED ZOOM Front Switch yellow is engineered for intrinsically safe operation in ATEX Zone 0 and Zone 20 areas where both gas and dust explosion hazards may be present. The eLED light source delivers 165 lm providing reliable brightness for industrial inspections and operational tasks. The beam can be smoothly adjusted using projection optics allowing precise transitions between wide and narrow illumination patterns. The flashlight maintains more than 80 percent of its brightness during the majority of battery life ensuring consistent performance. The IP67 housing offers full dust protection and water resistance up to 1 m immersion which supports the use of the device in harsh field conditions. The body is constructed from non conductive corrosion resistant ABS and polycarbonate materials that withstand demanding industrial environments. The Front Switch mechanism enables reliable activation even when gloves are worn. Measuring 165 x 40 x 36 mm and weighing 163 g the flashlight remains compact and comfortable during extended use. With beam angles ranging from 18° narrow to 37° wide the device supports both precision inspection and general area lighting. The ATEX markings confirm compliance with the highest European safety standards for hazardous locations.
Technical specifications
| Specification | Value |
|---|---|
| ATEX zone | Zone 0/20 |
| ATEX certificate | SEV 17 ATEX 0158 X |
| ATEX marking | II 1G Ex ia op is IIC T4 Ga, II 1D Ex ia op is IIIC T75°C Da |
| Light source | eLED adjustable module |
| Lumen output | 165 lm |
| Beam distance | 232–387 m |
| Beam angles | 18° narrow, 37° wide |
| Dimensions | 165 x 40 x 36 mm |
| Weight | 163 g |
| Battery type | 4 x AA alkaline |
| Housing material | ABS and polycarbonate |
| IP rating | IP67 |
| Waterproof rating | Up to 1 m |
Benefits
- Intrinsically safe design suitable for ATEX Zone 0 and Zone 20.
- Adjustable projection optics enable precise control of the light beam.
- Durable non conductive ABS polycarbonate housing.
- IP67 sealing ensures resistance to dust and water.
- Stable light output maintained throughout most of the battery cycle.
Manufacturer overview
Underwater Kinetics develops intrinsically safe and durable lighting tools designed for demanding industrial environments where reliability is essential. The company is recognized for advanced optical technologies and robust construction in hazardous area lighting solutions.
Box contents
- 4AA eLED ZOOM Front Switch yellow
- 4 x AA alkaline batteries
Contact us for technical guidance or a quotation.
| ATEX Zone | Zone 0, Zone 20 |
| ATEX certification | SEV 17 ATEX 0158 X |
| ATEX certification gas | II 1G Ex ia op is IIC T4 Ga |
| ATEX certification Dust | II 1D Ex ia op is IIIC T75°C Da |
| ATEX certification mining | - |
| IECEx Certification | - |
| IECEx certification gas | - |
| IECEx certification dust | - |
| IECEx certification mining | - |
| Ingress Protection | IP67 |
| Light source | eLED adjustable LED module |
| Light output (lm) | 165 lm |
| Beam distance (m) | 232 to 387 m |
| Peak beam intensity (cd) | - |
| Runtime (hh:mm) | 5:30 hours |
| Rechargeable | No |
| Charge time (hh:mm) | N/A |
| Battery Type | 4 x AA alkaline (LR6) [uwk.com] |
| Housing material | ABS |
| Lens material | Polycarbonate |
| Weight with batteries (gram) | 163 g |
| Height (mm) | 165 mm |
| Thickness (mm) | 36 mm |
| Width (mm) | 40 mm |
| Diameter (mm) | - |
