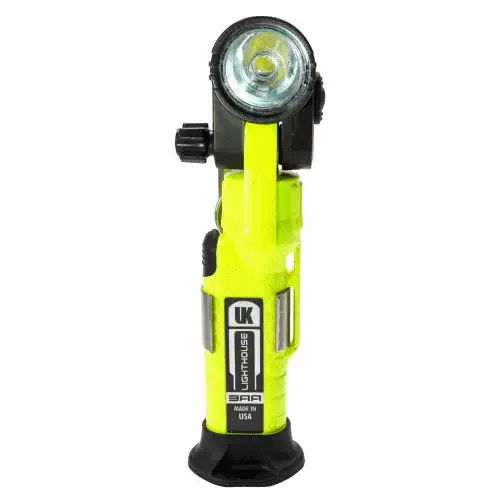

UK Underwater Kinetics 3AA Lighthouse - ATEX - Flashlight - Zone 0/20
Right‑angle ATEX flashlight delivering 228 lm, 147 m beam distance and IP67 sealing for safe operation in Zone 0/20 classified areas.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available
The UK Underwater Kinetics 3AA Lighthouse is an intrinsically safe right‑angle flashlight intended for ATEX Zone 0/20 use where gas and dust hazards may be present. The certification includes II 1G Ex ia IIC T4 Ga and II 1D Ex ia IIIC T200 135°C Da supporting safe deployment in hazardous locations. The output is rated at 228 lm to provide clear illumination for inspection and task lighting. The beam reaches 147 m which aids operator visibility in large work areas. A 360° swivel and 120° tilt head enable precise beam placement without repositioning the body. The housing uses high‑impact ABS and LEXAN polycarbonate engineered for durability in harsh conditions. The device is sealed to IP67 for dust protection and immersion to 1 m. Power is supplied by 3 × AA alkaline cells and typical runtime is approximately 8:24 hours per set. With listed weight of 195 g with magnetic base, handling remains comfortable during extended shifts.
Technical specifications
| Specification | Value |
|---|---|
| ATEX zone | Zone 0/20. |
| ATEX certificate | SEV 18 ATEX 0177 X. |
| ATEX marking | II 1G Ex ia IIC T4 Ga, II 1D Ex ia IIIC T200 135°C Da. |
| IP rating | IP67. |
| Housing material | High‑impact ABS, LEXAN polycarbonate, polyurethane rubber. |
| Lens material | Polycarbonate. |
| Dimensions | 180 × 53 × 38 mm. |
| Weight | 195 g. |
| Light source | LED. |
| Lumen output | 228 lm. |
| Beam distance | 147 m. |
| Power supply | 3 × AA alkaline. |
| Runtime | 8:24 hours. |
| Mechanical features | 360° swivel, 120° tilt. |
Benefits
- Intrinsically safe for ATEX Zone 0/20 with gas and dust markings II 1G and II 1D.
- Strong visibility with 228 lm output and 147 m beam reach.
- Flexible aiming via 360° swivel and 120° tilt head.
- Robust ABS and LEXAN polycarbonate construction for harsh environments.
- IP67 sealing for dust protection and temporary immersion.
Manufacturer overview
Underwater Kinetics designs intrinsically safe industrial lighting with a focus on durability, ergonomics and hazardous‑area deployment. The portfolio features sealed constructions and practical mounting options for diverse industries.
Box contents
- 3AA Lighthouse flashlight.
- 3 × AA alkaline batteries.
- Clip, documentation.
Contact us for technical guidance or a quotation.
| ATEX Zone | Zone 0, Zone 20 |
| ATEX certification | SEV 18 ATEX 0177 X |
| ATEX certification gas | II 1G Ex ia IIC T4 Ga |
| ATEX certification Dust | II 1D Ex ia IIIC T75°C Da. |
| ATEX certification mining | - |
| IECEx Certification | - |
| IECEx certification gas | - |
| IECEx certification dust | - |
| IECEx certification mining | - |
| Ingress Protection | IP67 |
| Light source | LED |
| Light output (lm) | 228 lm |
| Beam distance (m) | 147 m |
| Peak beam intensity (cd) | - |
| Color temperature | - |
| Runtime (hh:mm) | 8:24 hours |
| Rechargeable | No |
| Charge time (hh:mm) | - |
| Battery Type | 3 × AA alkaline, LR6 |
| Housing material | High-impact ABS and polycarbonate materials |
| Lens material | Polycarbonate |
| Height (mm) | 182 mm |
| Thickness (mm) | 38.1 mm |
| Width (mm) | 53.3 mm |
| Diameter (mm) | - |
| Weight with batteries (gram) | 195 g |
| Factory warranty | - |
