This 5G smartphone is built for ATEX Zone 2/22. With Android 14, IP68, replaceable battery and powerful performance, it’s ready for any industrial challenge.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

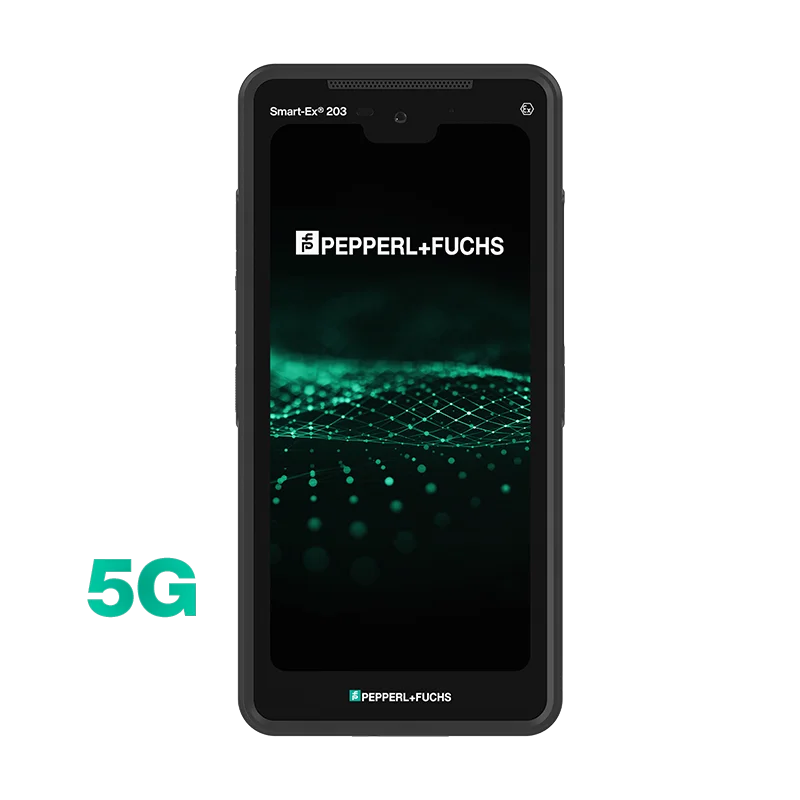

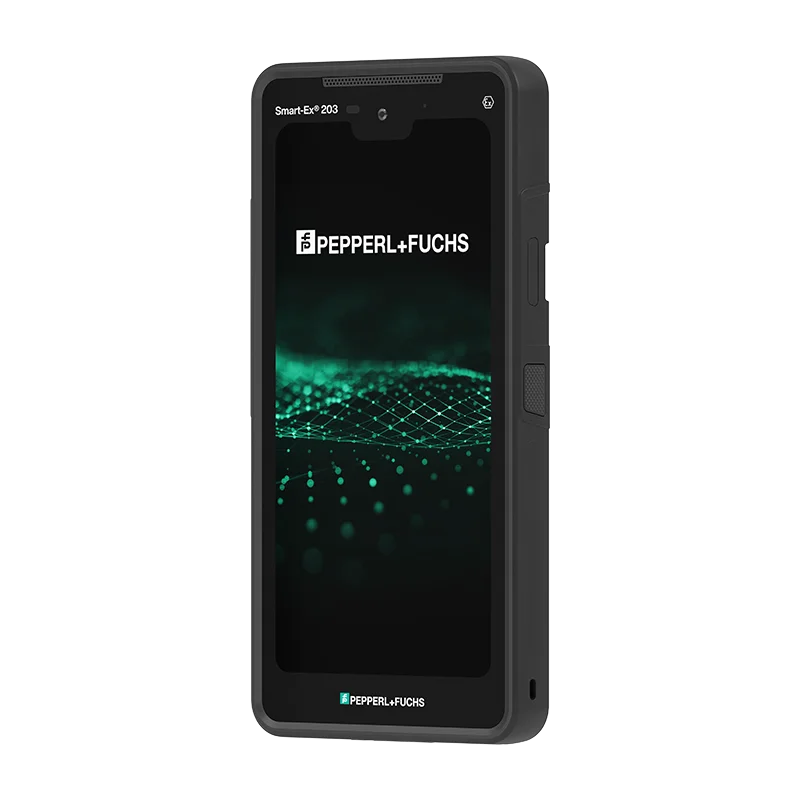

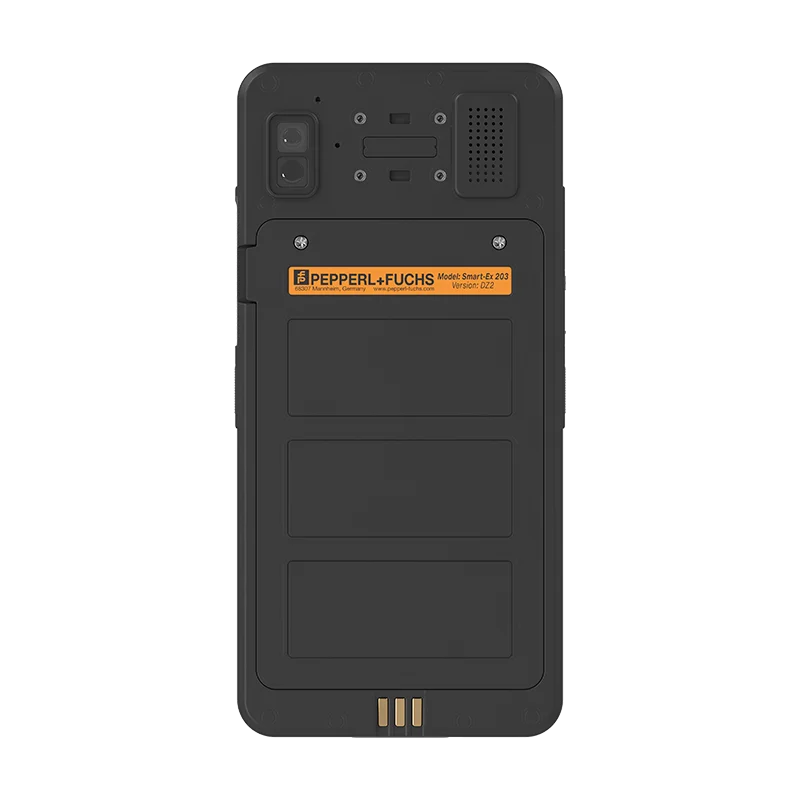

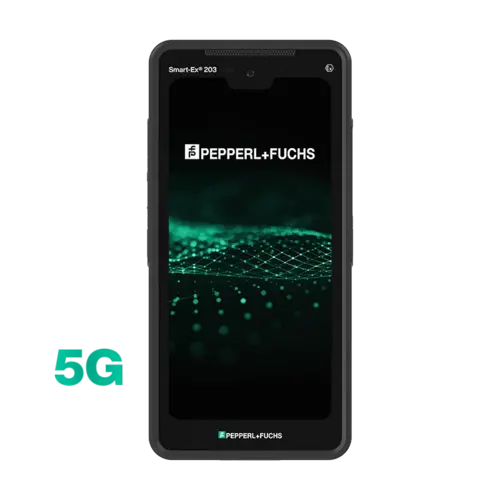

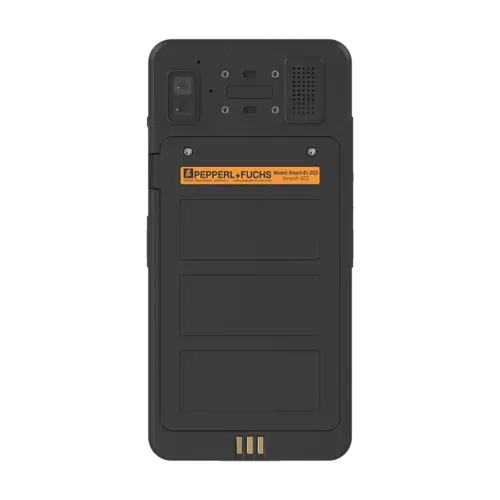

PEPPERL+FUCHS Smart-Ex 203 DZ2 - ATEX Z2/22 Smartphone
The Smart-Ex 203 DZ2 from PEPPERL+FUCHS is a rugged, ATEX-certified smartphone specifically developed for use in ATEX Zone 2/22. This industrial 5G smartphone combines modern technology with maximum safety, making it perfectly suited for demanding work environments such as oil and gas, chemical processing, and logistics.
Key features:
Display: 6" FHD (1080 × 2340) hardened glass, glove-compatible and readable in bright sunlight.
Processor: Qualcomm® QCM6490 octa-core, up to 2.7 GHz.
Memory: 8 GB RAM, 128 GB internal storage, expandable via microSD up to 512 GB.
Connectivity: 5G, Wi-Fi 6, Bluetooth 5.2, NFC, GPS/GLONASS/Galileo/BeiDou.
Cameras: 48 MP rear camera, 5 MP front camera.
Battery: 4400 mAh, replaceable, with USB-C fast charging.
Housing: IP68 dust- and waterproof, MIL-STD-810H certified, drop-resistant up to 1.2 meters.
Operating system: Android™ 14, with updates up to Android™ 18.
Interfaces: ISM interface for accessories, 2 programmable buttons, pogo-pin docking connector.
Certifications: Android Enterprise Recommended (pending), ARCore (pending).
The Smart-Ex 203 is designed for maximum flexibility, safety, and reliability. With its replaceable battery, extensive connectivity options, and support for industrial accessories, this device is perfectly suited for mobile workflows, remote monitoring, IIoT integration, and secure communication in ATEX Zone 2/22.
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 25 ATEX 1 131 X |
| ATEX certification gas | II 3G Ex ic IIC T4 Gc |
| ATEX certification Dust | II 3D Ex ic IIIC T135°C Dc |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 25.0034X |
| IECEx certification gas | Ex ic IIC T4 Gc |
| IECEx certification dust | Ex ic IIIC T135°C Dc |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810H |
| Type of device | ATEX smartphone |
| Ingress Protection | IP68 |
| Operating system | Android 14 |
| Processor | Qualcomm QCM4490 |
| Memory | 128 GB |
| Screensize | 6,3 inch |
| Display resolution | 1080 x 2340 |
| Touchscreen | TFT FHD+ |
| Camera | 48 MP autofocus with LED flash, front camera 16 MP |
| Messaging functions | SMS, MMS |
| Mobile connectivity | 4G, 5G |
| Frequencies | FDD-LTE, TDD-LTE, 5G NR |
| Dual Sim | eSIM + Nano-SIM |
| Micro SD | Yes (up to 512 GB) |
| Battery Capacity | 4,500 mAh (replaceable) |
| Bluetooth | 5.2 |
| Wifi | Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2.4 GHz + 5 GHz + 6 GHz |
| Flashlight | Yes |
| Vibrate function | Yes |
| Barcode reader | Yes (optional) |
| GPS | GPS, GLONASS, Galileo, QZSS, BeiDou |
| SOS button | Yes (programmable) |
| PTT (Pusc-to-Talk) | Yes (programmable) |
| Lone worker protection | Yes (programmable) |
| Programmable keys | Yes |
| Height (mm) | 177 mm |
| Width (mm) | 86 mm |
| Thickness (mm) | 17 mm |
| Weight with batteries (gram) | 365 g |
| Factory warranty | - |
