I.SAFE MOBILE IS945.2 Tablet Set | Zone 2/22 | W11-IoT
The i.safe MOBILE IS945.2 is an explosion-proof ATEX Zone 2/22 Windows tablet with 5G, rugged design, and advanced industrial applications. Available at Jenson ATEX Depot. Read more

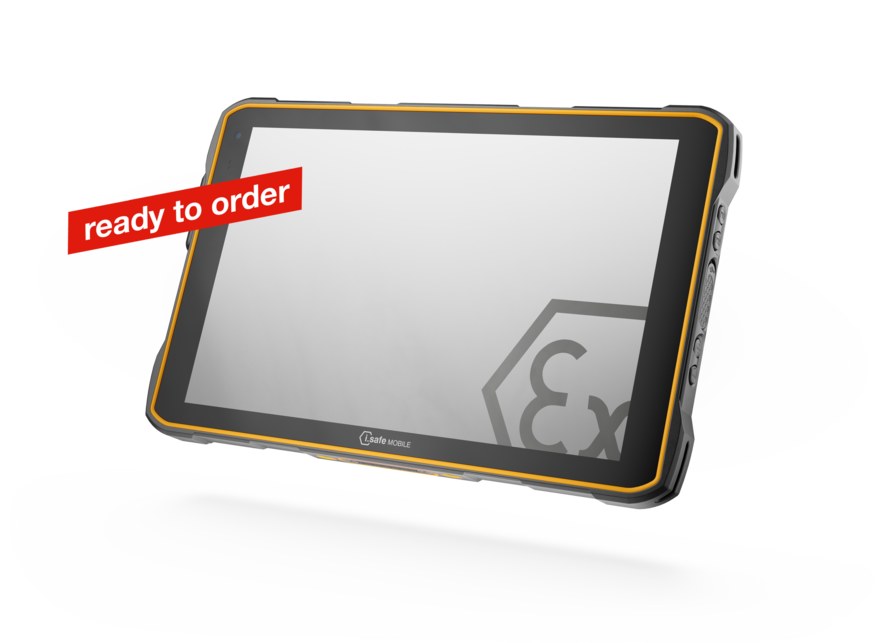

i.safe MOBILE IS945.2 – ATEX Zone 2/22 Windows Tablet
The i.safe MOBILE IS945.2 is a next-generation explosion-proof Windows tablet, specifically engineered for use in ATEX Zone 2/22 and IECEx-certified environments. This rugged industrial device delivers high performance, advanced connectivity, and maximum safety for professionals working in demanding sectors such as petrochemicals, offshore, pharmaceuticals, and energy.
Technical Specifications
- Certification: ATEX Zone 2/22, IECEx
- Operating System: Windows 11 IoT Enterprise
- Processor: Qualcomm® QCM6490 Octa-Core
- Memory: 8 GB RAM
- Storage: 128 GB internal, expandable via microSD up to 512 GB
- Display: 10.1" WUXGA (1920 × 1200), Corning® Gorilla® Glass 3, glove-compatible touchscreen
- Connectivity:
- 5G and 4G LTE
- Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax)
- Bluetooth 5.2
- NFC
- GPS, A-GPS, Glonass, Beidou, Galileo
- Cameras:
- Rear: 12 MP autofocus
- Front: 5 MP fixed focus
- Battery: 8160 mAh, replaceable, long-lasting
- Durability:
- IP68 dust and waterproof
- MIL-STD-810H certified
- Operating temperature: -20 °C to +55 °C
- Dimensions: 266.17 × 168.46 × 19.82 mm
- Weight: 1059 g
- Interfaces: USB-C, 16-pin ISM, 12-pin ISM (for docking station)
- Additional Features:
- SOS button for lone worker protection
- Two programmable side buttons via Button App
- Enhanced speaker for noisy environments
- VESA 100 mounting compatibility
What's in the Box
- IS945.2 tablet
- 8160 mAh battery
- Wrist strap
- i.safe PROTECTOR 2.0 USB-C cable
- Universal power adapter
- Screen protector
- Screwdriver
- Safety instructions
Applications
The IS945.2 is the ideal solution for mobile data processing in hazardous areas. With powerful hardware and extensive connectivity options, this tablet is suitable for:
- Inspection and maintenance in ATEX environments
- Process automation and monitoring
- Asset management and digital work orders
- Real-time communication via 5G and Wi-Fi 6
- Integration into IIoT systems
Why Choose Jenson ATEX Depot?
- Specialist in ATEX-certified equipment and explosion-proof solutions
- Fast delivery across the Netherlands and Belgium
- Expert advice from certified ATEX professionals
- Rental and leasing options available
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 25 ATEX 1 002 X |
| ATEX certification gas | Ex II 3G Ex ic IIC T4 Gc |
| ATEX certification Dust | Ex II 3D Ex ic IIIC T135°C Dc |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 25.0002X |
| IECEx certification gas | Ex ic IIC T4 Gc |
| IECEx certification dust | Ex ic IIIC T135°C Dc |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810H |
| Type of device | ATEX Tablet |
| Ingress Protection | IP68 |
| Operating system | Windows 11 IoT Enterprise LTSC for Arm64 |
| Processor | Qualcomm QCM6490, Octa Core |
| Memory | 128 GB |
| Screensize | 10,1 inch |
| Display resolution | 1200 x 1920 |
| Touchscreen | Corning Gorilla Glass 3, usable with gloves |
| Camera | 12 MP autofocus, front camera 5 MP fixed focus |
| Mobile connectivity | |
| Frequencies | LTE FDD, LTE TDD, 5G NR |
| Battery Capacity | 8,160 mAh (replaceable) |
| Bluetooth | 5.2 |
| Wifi | Wi-Fi 6 (802.11 a/b/g/n/ac/ax/e/k/r/v) |
| Barcode reader | No |
| GPS | GPS, GLONASS, BeiDou, Galileo |
| Programmable keys | Yes |
| Height (mm) | 266,17 mm |
| Width (mm) | 168,46 mm |
| Thickness (mm) | 19,82 mm |
| Weight with batteries (gram) | 1.059 g |
| Factory warranty | 2 years (i.safe MOBILE) |
