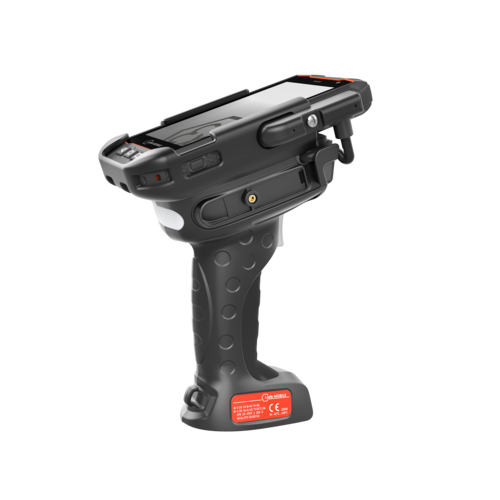

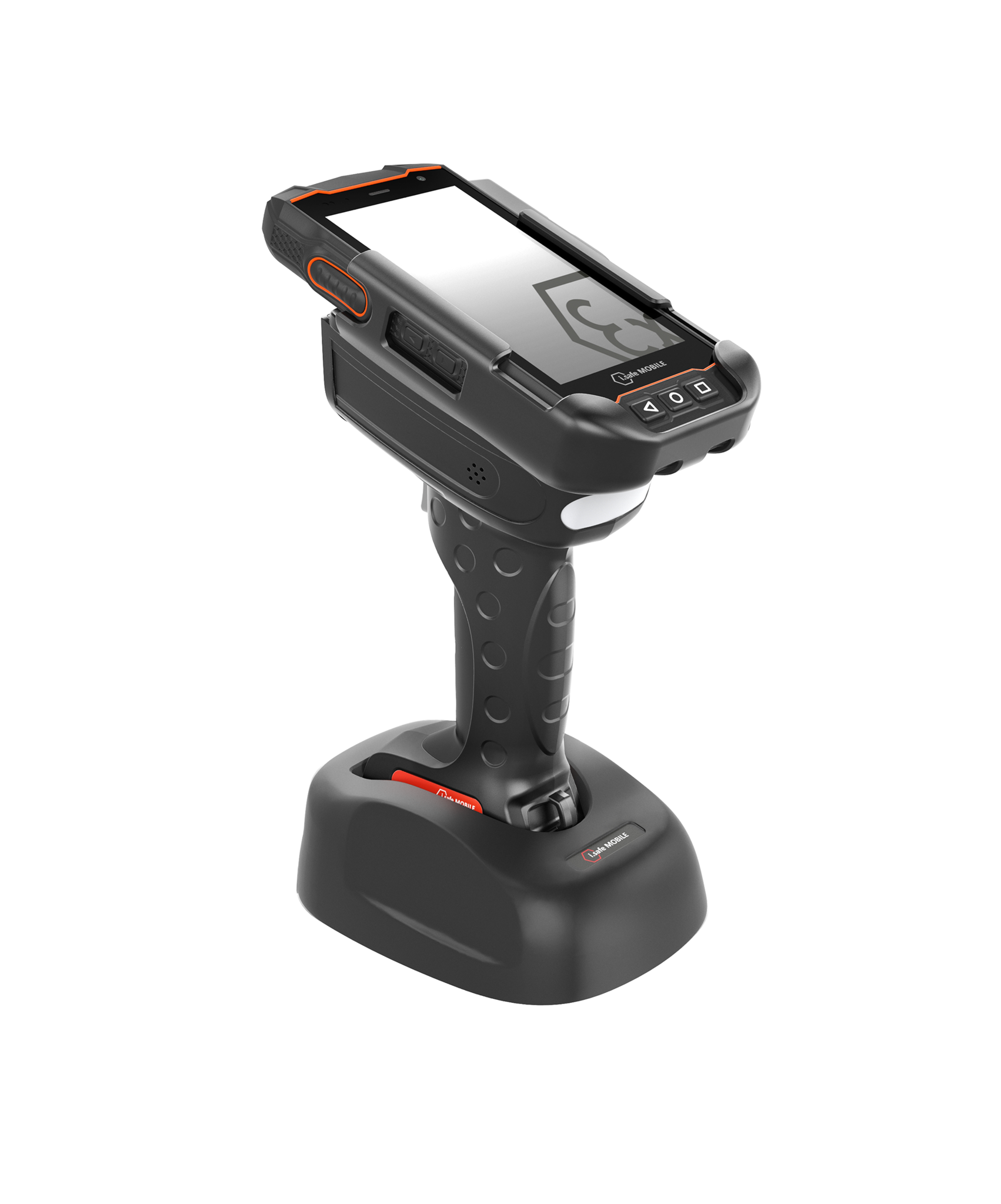

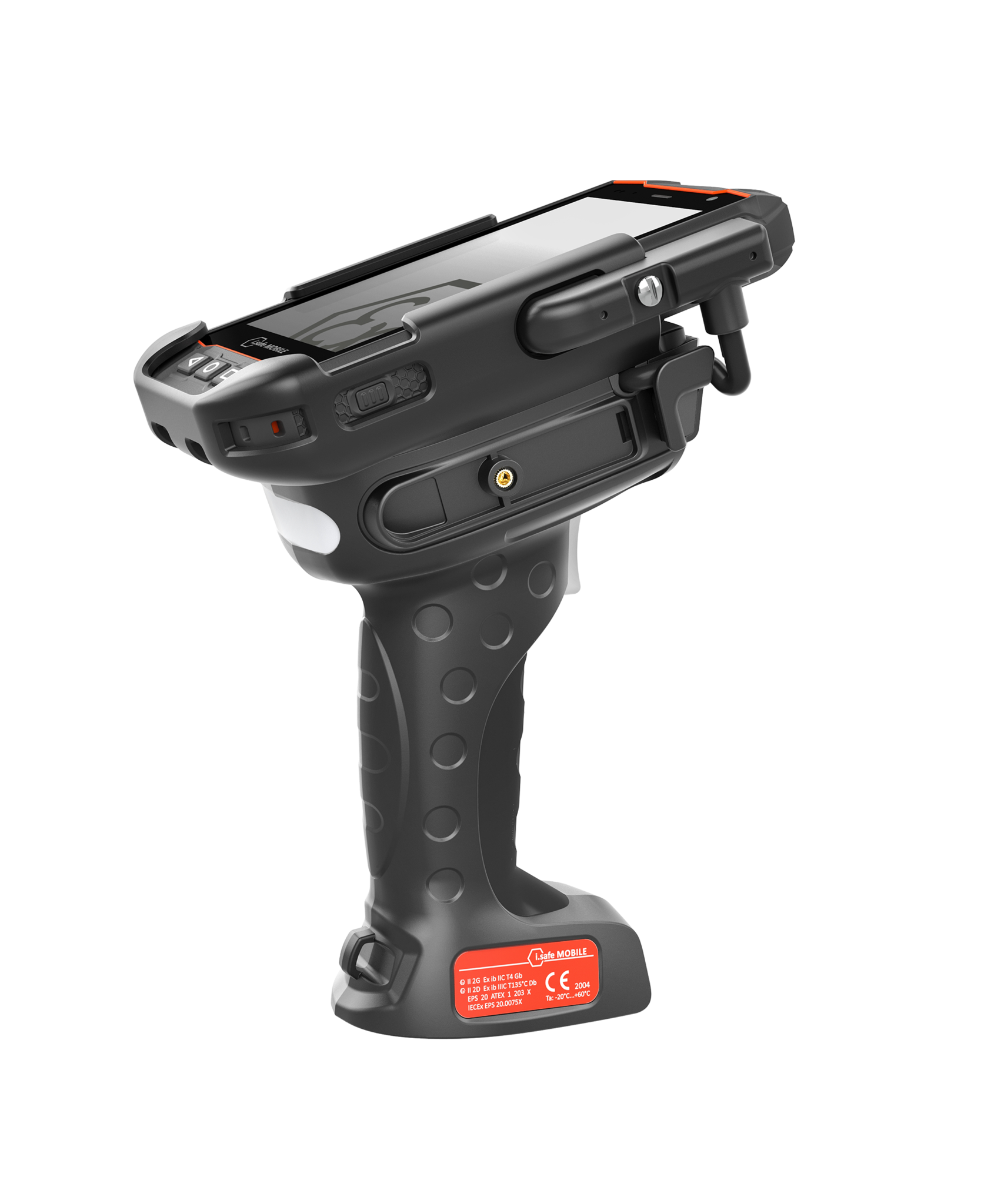

i.safe-MOBILE IS-TH1ER.1 Trigger Handle Set Extended-range - ATEX zone 1/21

IS-TH1ER.1 Extended-Range (ER) trigger handle for ATEX zone 1/21 - i.safe-MOBILE IS530.x smartphone not included

The mobile multi-purpose Trigger Handle (handheld barcode scanner) together with an industrial smartphone IS530.x (not included) is a flexible combination for reliable data collection in Ex areas. The HID-active, ready-to-use high-performance scanner captures via the reliable Zebra OEM imager scan engines all 1D or 2D barcodes at short distances up to 6 meters or at distances of more than 15 meters. The data is further processed directly via the IS530.x smartphone connected via the ISM interface.

ADVANTAGES

Reliable data acquisition and processing for 1D or 2D barcodes
Also for long distances of more than 15 meters
Direct data transfer via multifunctional (ISM) interface
Power supply via the connected device, so no battery is required
Direct interface connection to the device, no Bluetooth® required

TECHNICAL FEATURES

Dimensions: 200 x 82 x 125 mm
Weight: 500 g
Degree of protection IP68 dust/water proof
Usable from -20 °C to 60 °C
Scan type options MR (medium range) Zebra SE4750 MR (~6 m)
ER (long range) Zebra SE4850 ER (~15 m)
