BARTEC TC78ex-NI touch computer for ATEX Zone 2/22 with 6" Full HD+ display, SE55 scanner up to 12 m, 5G and Wi-Fi 6E.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

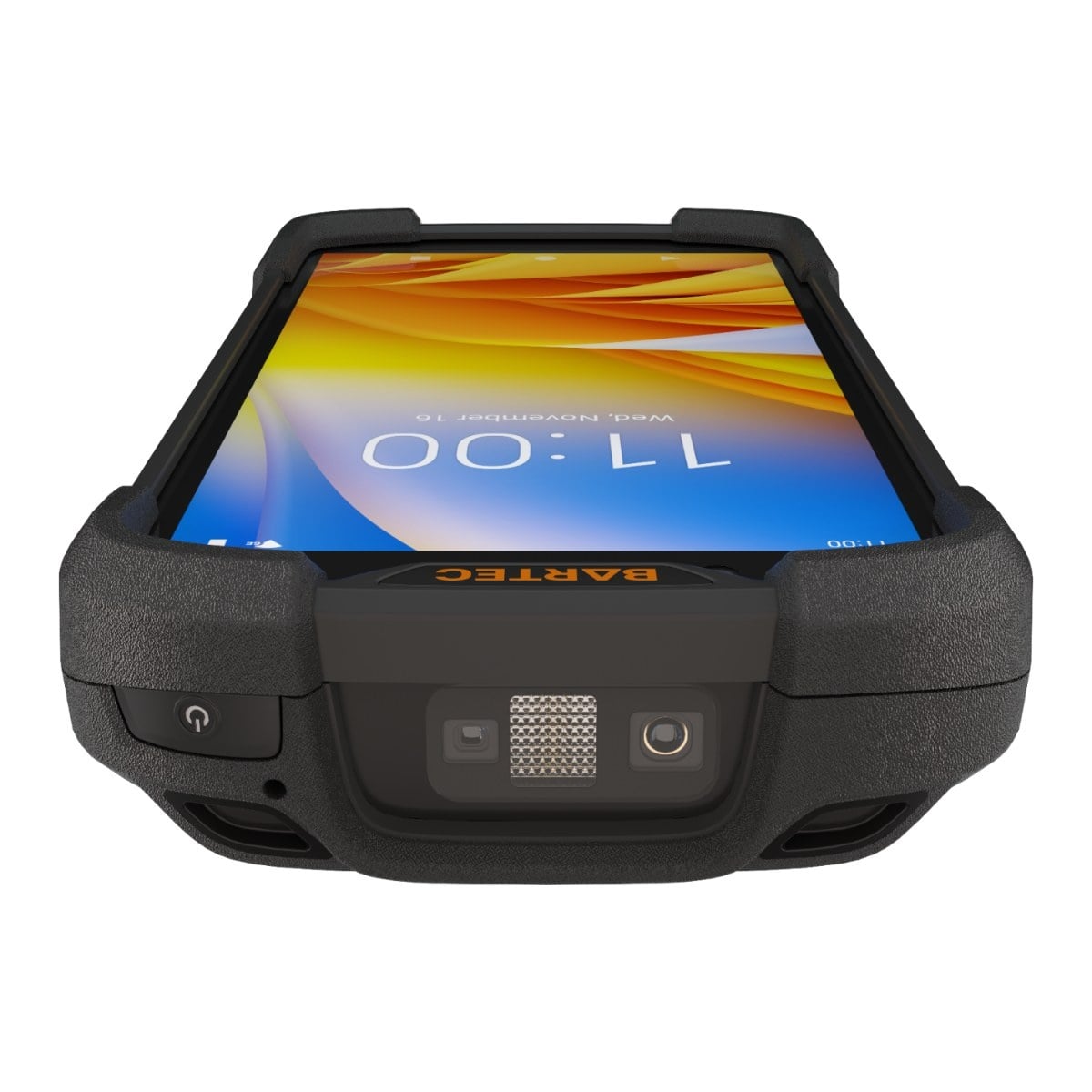

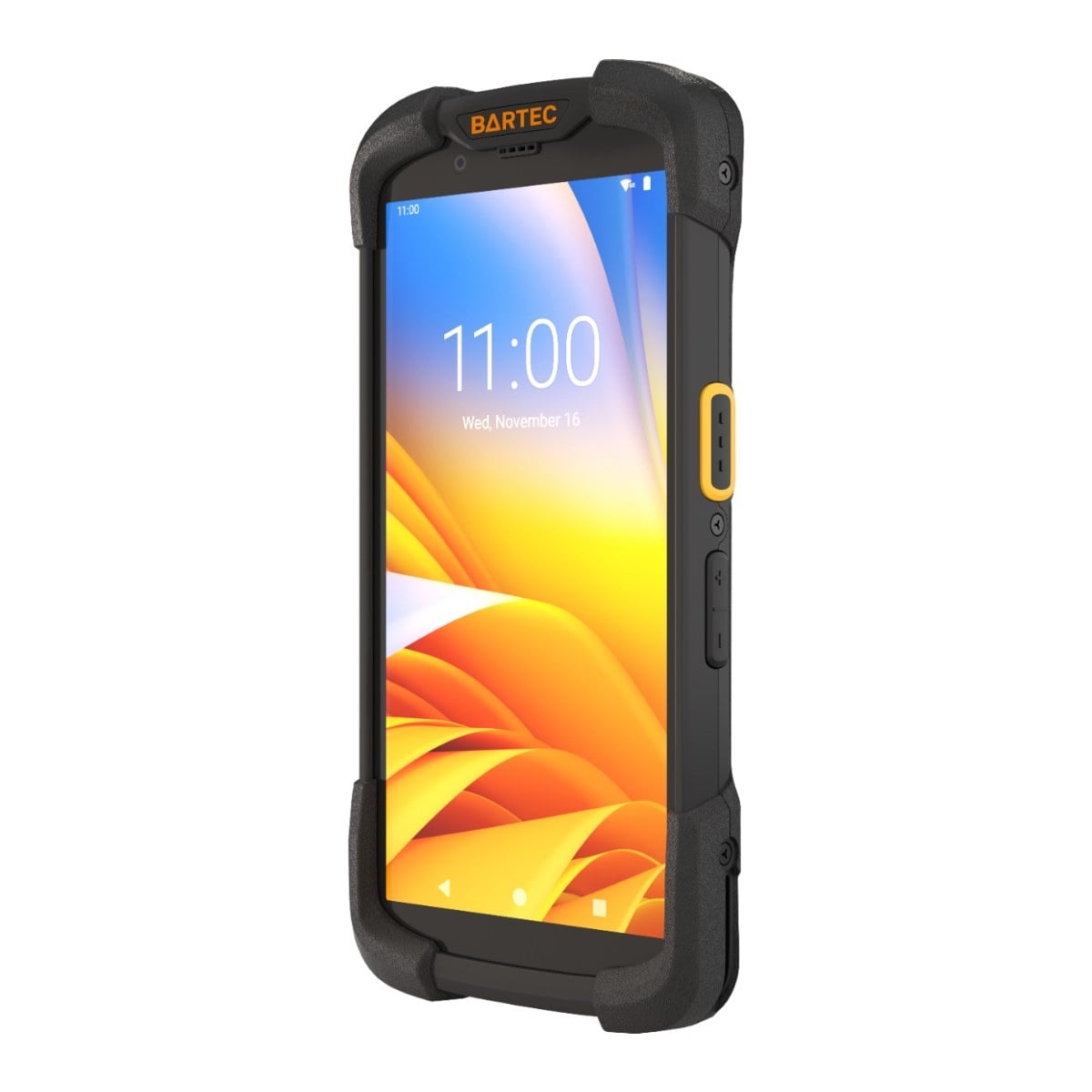

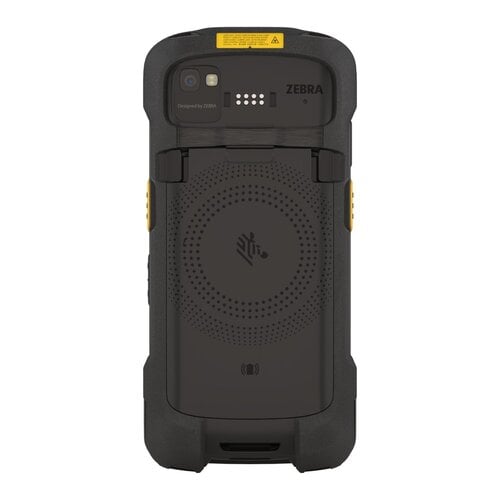

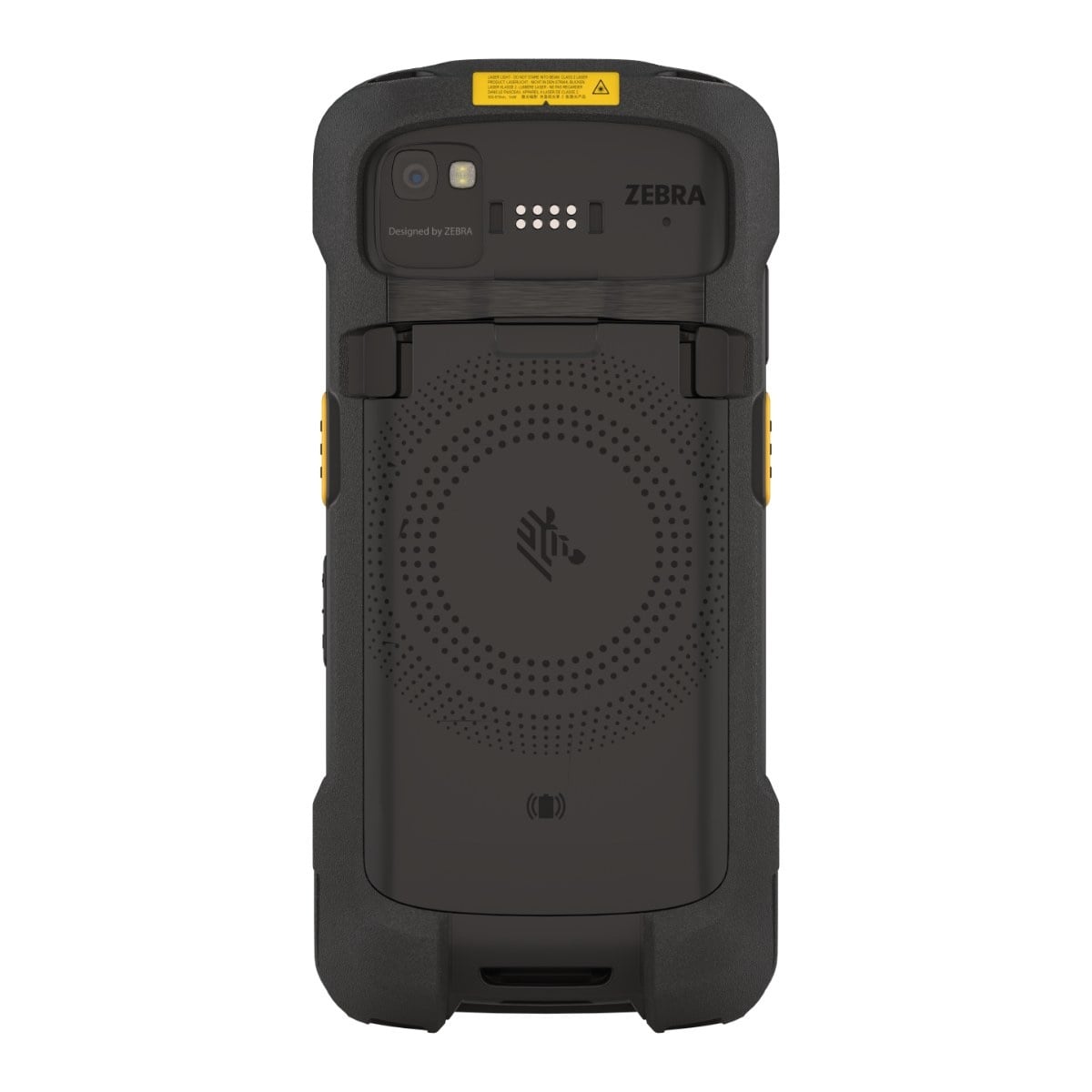

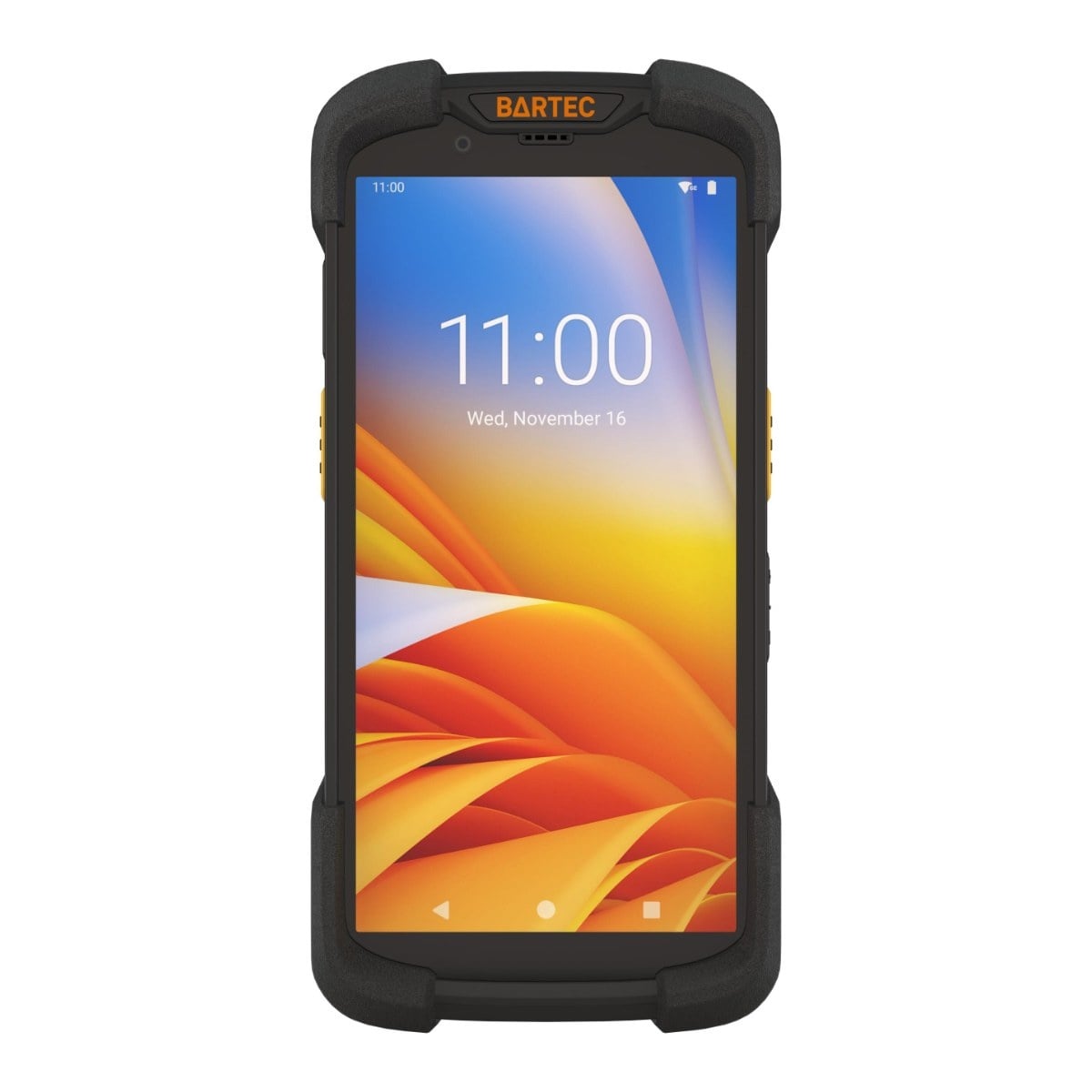

The BARTEC TC78ex-NI is a rugged touch computer in smartphone format, based on the Zebra TC78 and approved for ATEX/IECEx/UKEX Zone 2/22 and NEC Class I, II, III Div. 2. It is thinner and lighter than previous generations and handles scanning, calls, video and apps in hazardous areas.
The 6-inch Full HD+ display with Gorilla Glass works with bare fingers, gloves or stylus. Inside is a Qualcomm 6490 octa-core processor with 4 GB RAM and 64 GB storage (microSD up to 2 TB), running Android™ 14 with support for future versions up to Android™ 16.
The Zebra SE55 Advanced Range scan engine reads 1D and 2D barcodes from close up to 12 metres. Dual scan buttons and a dedicated push-to-talk button speed up the work; with Zebra Workforce Connect PTT Pro your team can communicate instantly.
For connectivity the TC78ex-NI offers 5G (nano SIM + eSIM), Wi-Fi 6E, Bluetooth 5.2, NFC and GNSS. Zebra's free Mobility DNA tools are pre-installed, so devices are easy to deploy, secure and manage.
The device is IP68 rated and survives multiple 3.05 m drops to concrete and 2,000 tumbles from 1 m.
Please note: Charging accessories are not included. Change and charge the battery outside the hazardous area only.
Technical specifications
| Specification | Value |
| ATEX marking | II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135°C Dc IP64 |
| ATEX certificate | EPS 23 ATEX 1 053 X |
| IECEx | IECEx EPS 23.0008X |
| UKEX | EPS 23 UKEX 1 053 X |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Part number | B7-A2D3-2B11121110A6 (rest of world version) |
| Processor | Qualcomm 6490 octa-core, 2.7 GHz |
| Memory / storage | 4 GB RAM / 64 GB UFS flash, microSD up to 2 TB |
| Operating system | Android™ 14 (GMS), hardware supports up to Android™ 16 |
| Display | 6" Full HD+ (2160 x 1080), Corning Gorilla Glass, finger, glove or stylus input |
| Barcode scanner | Zebra SE55 1D/2D Advanced Range with IntelliFocus™, range up to 12.2 m |
| Camera | Rear 16 MP autofocus with flash, front 8 MP |
| Cellular | 5G / 4G / 3G / 2G, 1 nano SIM and 1 eSIM |
| Wireless | Wi-Fi 6E (2x2 MU-MIMO), Bluetooth 5.2, NFC, GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS) |
| Buttons | 2 scan buttons, push-to-talk button, volume buttons (programmable) |
| Battery | Li-polymer 3.85 V / 4,680 mAh, fast charging, warm swap |
| Ingress protection | IP68 |
| Drop test | Multiple 3.05 m drops to concrete (room temperature), 2.4 m across the temperature range, 2,000 tumbles from 1 m |
| Operating temperature | -20 °C to +50 °C |
| Dimensions | 176.8 x 85.8 x 28.4 mm |
| Weight | 349 g (with battery) |
| Warranty | 1 year on the device, 6 months on battery and accessories |
Benefits
- ATEX/IECEx/UKEX Zone 2/22 and NEC Div. 2
- Smartphone size, yet ultra-rugged
- Large 6" Full HD+ display, also with gloves
- SE55 scan engine with range up to 12 m
- 5G and Wi-Fi 6E for fast connections
- Push-to-talk with Zebra PTT Pro
- 16 MP camera for photo and video
- IP68 and 3.05 m drop rated
- Mobility DNA tools included free of charge
About BARTEC
BARTEC is a German specialist in explosion protection and has supplied equipment for hazardous areas for decades. For its mobile range BARTEC works with Zebra Technologies: proven Zebra technology, adapted and certified by BARTEC for ATEX zones. More information is available at bartec.com.
Package contents
- BARTEC TC78ex-NI Touch Computer
- Battery
- Quick Start Guide
Contact us for a quote, availability or technical advice via +31 (0)115 648 506 or [email protected].
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 23 ATEX 1 053 X |
| ATEX certification gas | II 3G Ex ic op is IIC T4 Gc |
| ATEX certification Dust | II 3D Ex ic op is IIIC T135°C Dc IP64 |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 23.0008X |
| IECEx certification gas | Ex ic op is IIC T4 Gc |
| IECEx certification dust | Ex ic op is IIIC T135°C Dc IP64 |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810H |
| Type of device | ATEX touch computer |
| Ingress Protection | IP68 |
| Operating system | Android 14 (hardware up to Android 16) |
| Processor | Qualcomm 6490, Octa Core, 2,7 GHz |
| Memory | 4 GB RAM, 64 GB storage |
| Screensize | 6 inch |
| Display resolution | 2160 x 1080 |
| Touchscreen | Corning Gorilla Glass, capacitive multi-touch, usable with gloves or stylus |
| Camera | 16 MP autofocus, front camera 8 MP |
| Messaging functions | Calls, SMS, PTT Pro, e-mail and apps |
| Mobile connectivity | 5G / 4G / 3G / 2G |
| Frequencies | 5G FR1, LTE, UMTS, GSM (rest of world version) |
| Dual Sim | Yes (nano SIM + eSIM) |
| Micro SD | Yes, up to 2 TB |
| Battery Capacity | 4,680 mAh (replaceable) |
| Bluetooth | Bluetooth 5.2 |
| Wifi | Wi-Fi 6E (802.11ax) |
| Flashlight | Yes (flash in torch mode) |
| Vibrate function | Yes |
| Barcode reader | SE55 1D/2D Advanced Range Scan Engine |
| GPS | Yes (GPS, GLONASS, Galileo, BeiDou, QZSS) |
| SOS button | - |
| PTT (Pusc-to-Talk) | Yes, dedicated PTT button |
| Lone worker protection | - |
| Programmable keys | Yes |
| Height (mm) | 176,8 |
| Width (mm) | 85,8 |
| Thickness (mm) | 28,4 |
| Weight with batteries (gram) | 349 g |
| Factory warranty | 1 year (BARTEC) |
