BARTEC SP9EX1 without camera: compact 5G ATEX smartphone for Zone 0/1/21, for sites where cameras are not allowed.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

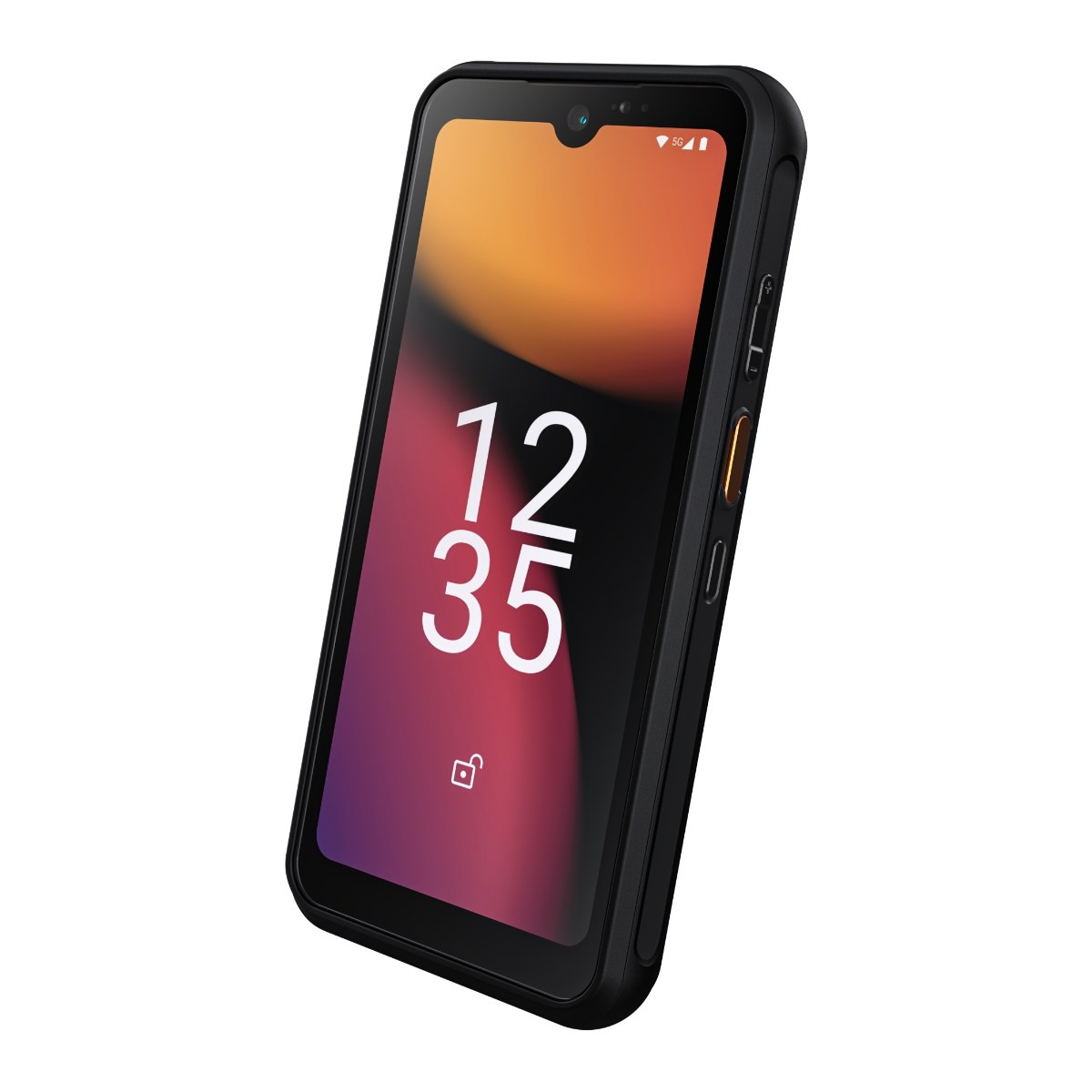

The BARTEC SP9EX1 without camera is the camera-free version of the SP9EX1, according to BARTEC the world's most compact 5G smartphone for ATEX/IECEx Zone 0/1 and 21 and NEC Class I Div. 1. Without a camera this version suits sites where cameras are not allowed.
Otherwise it is the same powerful smartphone: Qualcomm® QCM6490 octa-core processor, 8 GB RAM, 128 GB storage and Android™ 15, upgradeable to Android™ 16. The 6.1-inch AMOLED display with Gorilla® Glass Victus® also works with gloves or stylus.
For connectivity the SP9EX1 offers 5G, Wi-Fi 6, Bluetooth 5.2, NFC and GNSS, with dual SIM (nano SIM + eSIM). Two programmable buttons can be used for push-to-talk or an emergency call, for example.
The SP9EX1 is IP68 rated, tested to MIL-STD-810H and works with the full SP9EX accessory range, such as charging stations, protective cover and wrist strap.
Please note: A USB-C charger is not included (e.g. the BARTEC Wall Charger).
Technical specifications
| Specification | Value |
| ATEX marking | II 1G Ex ia IIC T4 Ga II 2D Ex ia IIIC T135 °C Db IP64 |
| ATEX certificate | UL 24 ATEX 3153X |
| IECEx | Ex ia IIC T4 Ga / Ex ia IIIC T135 °C Db IP64 (IECEx UL 24.0004X) |
| NEC/CEC | Class I, II, III Div. 1 / Zone 0 and Zone 21 (E226123) |
| Zones | Zone 0, 1, 2 (gas) and Zone 21, 22 (dust) |
| Part number | 17-S19P-31110210 |
| Processor | Qualcomm® QCM6490 octa-core, 2.7 GHz |
| Memory / storage | 8 GB RAM / 128 GB |
| Operating system | Android™ 15, upgradeable to Android™ 16 |
| Display | 6.1" AMOLED (1080 x 2340), Gorilla® Glass Victus®, finger, glove or stylus input |
| Camera | None (camera-free version) |
| Cellular | 5G / LTE / UMTS / GSM, dual SIM (nano SIM + eSIM) |
| Wireless | Wi-Fi 6 (802.11ax), Bluetooth 5.2, NFC, GNSS (GPS, GLONASS, Galileo, BeiDou) |
| Buttons | Power, 2 programmable buttons (e.g. PTT or emergency call), volume |
| Ports | USB-C, charging pins |
| Battery | Li-ion 3.68 V / 4,300 mAh (15.8 Wh), change and charge outside the hazardous area only |
| Ingress protection | IP68 |
| Drop test | Tested to MIL-STD-810H |
| Operating temperature | -20 °C to +55 °C (charging 0 °C to +45 °C) |
| Dimensions | 168.7 x 83.4 x 17.9 mm |
| Weight | 350 g (with battery) |
| Warranty | 2 years on the device, 6 months on battery and accessories |
Benefits
- ATEX/IECEx Zone 0/1/21 and NEC Div. 1
- No camera: suitable for camera-restricted sites
- Very compact and light (350 g)
- 5G and Wi-Fi 6, dual SIM
- 6.1" AMOLED display, also with gloves
- Android™ 15, upgradeable to 16
- Programmable buttons for PTT or emergency call
- IP68 and MIL-STD-810H tested
- Same accessories as the SP9EX series
- 2 year warranty
About BARTEC
BARTEC is a German specialist in explosion protection and has supplied equipment for hazardous areas for decades. For its mobile range BARTEC works with Zebra Technologies: proven Zebra technology, adapted and certified by BARTEC for ATEX zones. More information is available at bartec.com.
Package contents
- BARTEC SP9EX1 Smartphone
- Li-ion battery 3.68 V / 4,300 mAh
- Battery tool
- USB-C cable
- Quick Start Guide (EN)
Contact us for a quote, availability or technical advice via +31 (0)115 648 506 or [email protected].
| ATEX Zone | Zone 0, Zone 1, Zone 2, Zone 21, Zone 22 |
| ATEX certification | UL 24 ATEX 3153X |
| ATEX certification gas | II 1G Ex ia IIC T4 Ga |
| ATEX certification Dust | II 2D Ex ia IIIC T135 °C Db IP64 |
| ATEX certification mining | - |
| IECEx Certification | IECEx UL 24.0004X |
| IECEx certification gas | Ex ia IIC T4 Ga |
| IECEx certification dust | Ex ia IIIC T135 °C Db IP64 |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810H |
| Type of device | ATEX smartphone |
| Ingress Protection | IP68 |
| Operating system | Android 15 (upgradeable to Android 16) |
| Processor | Qualcomm QCM6490, Octa Core, 2,7 GHz |
| Memory | 8 GB RAM, 128 GB storage |
| Screensize | 6.1 inch AMOLED |
| Display resolution | 1080 x 2340 |
| Touchscreen | Gorilla Glass Victus, usable with finger, glove or stylus |
| Camera | No (camera-free version) |
| Messaging functions | Calls, SMS, e-mail and apps |
| Mobile connectivity | 5G / LTE / UMTS / GSM |
| Frequencies | 5G NR, LTE, UMTS, GSM |
| Dual Sim | Yes (nano SIM + eSIM) |
| Micro SD | - |
| Battery Capacity | 4,300 mAh (replaceable) |
| Bluetooth | Bluetooth 5.2 |
| Wifi | Wi-Fi 6 (802.11ax) |
| Flashlight | - |
| Vibrate function | Yes |
| Barcode reader | No |
| GPS | Yes (GPS, GLONASS, Galileo, BeiDou) |
| SOS button | Programmable button (e.g. emergency call) |
| PTT (Pusc-to-Talk) | Programmable button (e.g. PTT) |
| Lone worker protection | - |
| Programmable keys | Yes, 2 |
| Height (mm) | 168,7 |
| Width (mm) | 83,4 |
| Thickness (mm) | 17,9 |
| Weight with batteries (gram) | 350 g |
| Factory warranty | 2 years (BARTEC) |
