BARTEC MC9400EX2 gun-style mobile computer for ATEX Zone 2/22 with 29 keys, SE58 scanner up to 30.5 m.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available
The BARTEC MC9400EX2 is the ATEX version of the proven ultra-rugged Zebra MC9000 series: a gun-style mobile computer for warehouses, manufacturing, ports and yards with explosion risk. It is approved for ATEX/IECEx Zone 2/22 and comes with a 29 keys, numeric/calculator keypad.
The new Qualcomm platform delivers 2.5 times the processing power of the MC93ex-NI, with 6 GB RAM, 128 GB storage and Android™ 14 upgradeable to Android™ 18. Run demanding business apps, voice and legacy "green screen" apps at the same time. Ivanti All-Touch TE comes pre-installed and pre-licensed.

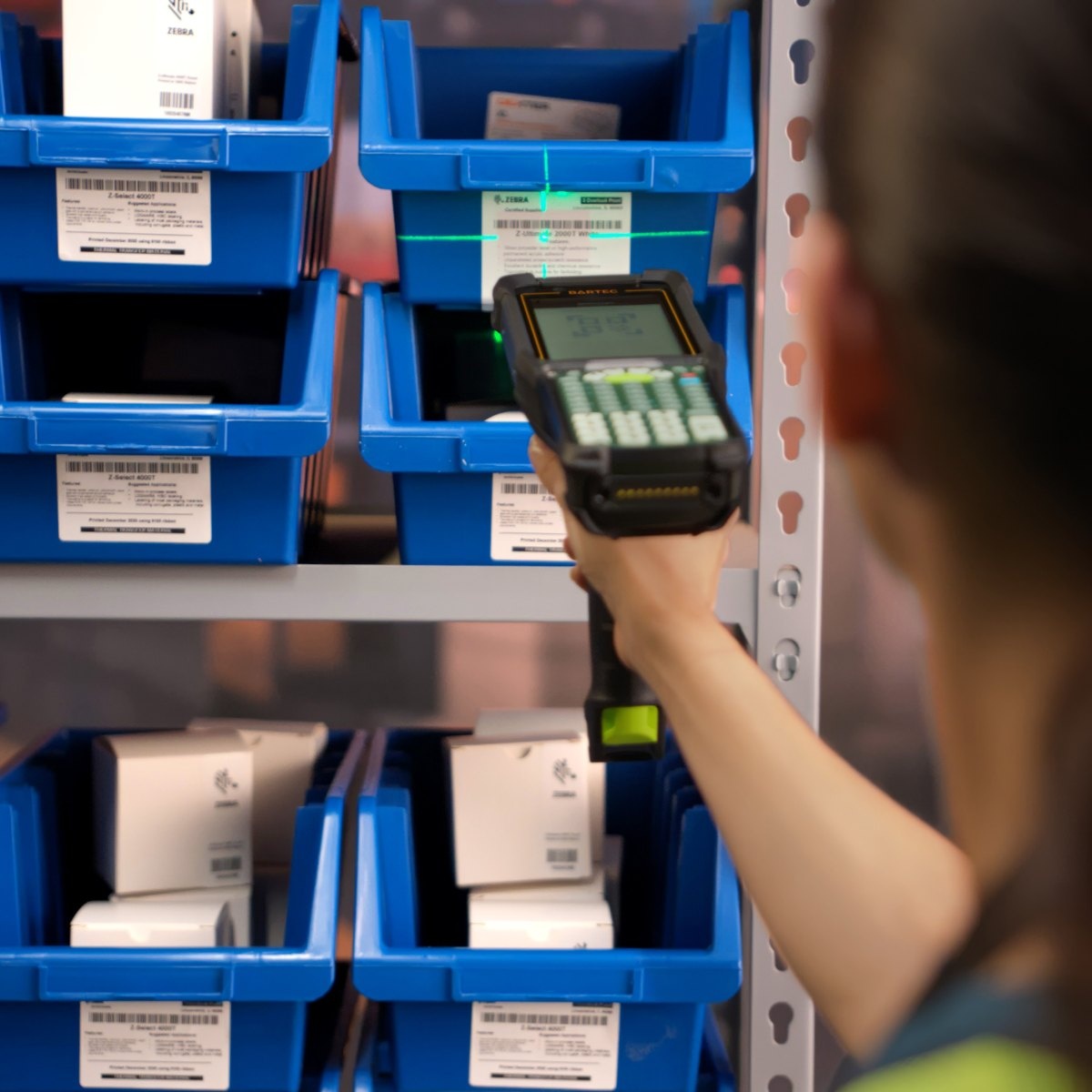

The Zebra SE58 Extended Range scan engine reads barcodes from in hand to more than 30 metres away, with a green laser aimer up to seven times more visible than a red one. Ideal for high racks and outdoor areas.
This MC9400EX2 is the WLAN version: Wi-Fi 6E for fast and stable connections on site, without cellular and without camera.
The device is waterproof, dustproof and built for everyday drops on concrete. The MC9400/9450EX2 also works with existing MC93ex-NI accessories, and with an adapter with older MC92 chargers.
Please note: Gas group IIC protection only applies with the supplied screen protector, leather handle cover fitted. Charging accessories (base station or battery charger) are not included. Change and charge the battery outside the hazardous area only.
Technical specifications
| Specification | Value |
| ATEX marking | II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135 °C Dc IP65 |
| ATEX certificate | EPS 24 ATEX 1 219 X |
| IECEx | Ex ic op is IIC T4 Gc / Ex ic op is IIIC T135 °C Dc IP65 (IECEx EPS 24.0075X) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Part number | B7-A2F5-2110C1M6ASA6 |
| Processor | Qualcomm® 4490 octa-core, 2.4 GHz |
| Memory / storage | 6 GB RAM / 128 GB flash, microSD up to 2 TB |
| Operating system | Android™ 14, upgradeable to Android™ 18 |
| Display | 4.3" WVGA (800 x 480), Corning Gorilla Glass, finger, glove or stylus input |
| Keypad | 29 keys, numeric/calculator, backlit and field replaceable |
| Barcode scanner | Zebra SE58 1D/2D Extended Range with IntelliFocus™ and green laser aimer, range up to 30.5 m |
| Camera | No camera |
| Wireless | Wi-Fi 6E (WLAN only, no cellular), Bluetooth 5.3, NFC |
| Battery | Li-ion 3.6 V / 7,000 mAh (25.2 Wh), fast charging, hot swap (change outside the Ex zone only) |
| Ingress protection | IP65, IP68 with battery |
| Drop test | 3.65 m to concrete (room temperature), 2.4 m across the full temperature range, 6,000 tumbles from 1 m |
| Operating temperature | -20 °C to +50 °C |
| Dimensions | 88 x 240 x 189 mm |
| Weight | 743 g (with battery) |
| Warranty | 1 year on the device, 6 months on battery and accessories |
Benefits
- ATEX/IECEx Zone 2/22, gas group IIC
- Zebra SE58 scan engine with range up to 30.5 m
- Green laser aimer, clearly visible on high racks
- 29 keys, numeric/calculator keypad, field replaceable
- 2.5x the processing power of the MC93ex-NI
- Android™ 14, upgradeable to Android™ 18
- Fast Wi-Fi 6E connection
- 7,000 mAh hot swap battery with fast charging
- IP65/IP68 and 3.65 m drop rated
- Works with existing MC93ex-NI accessories
About BARTEC
BARTEC is a German specialist in explosion protection and has supplied equipment for hazardous areas for decades. For its mobile range BARTEC works with Zebra Technologies: proven Zebra technology, adapted and certified by BARTEC for ATEX zones. More information is available at bartec.com.
Package contents
- BARTEC MC9400EX2 Mobile Computer
- Standard Li-ion battery 3.6 V / 7,000 mAh (hot swap)
- Screen protector (mandatory for gas group IIC)
- Leather handle cover (mandatory for gas group IIC)
- Quick Start Guide (EN)
Contact us for a quote, availability or technical advice via +31 (0)115 648 506 or [email protected].
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 24 ATEX 1 219 X |
| ATEX certification gas | II 3G Ex ic op is IIC T4 Gc |
| ATEX certification Dust | II 3D Ex ic op is IIIC T135 °C Dc IP65 |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 24.0075X |
| IECEx certification dust | Ex ic op is IIIC T135 °C Dc IP65 |
| IECEx certification gas | Ex ic op is IIC T4 Gc |
| IECEx certification mining | - |
| Ingress Protection | IP65, IP68 with battery |
| Operating System | Android 14 (upgradeable to Android 18) |
| scanning distance (m) | up to 30.5 |
| scanning technology | Zebra SE58 1D/2D Extended Range imager with green laser |
| Height (mm) | 240 |
| Width (mm) | 88 |
| Thickness (mm) | 189 |
| Weight | 743 g (with battery) |
| Factory warranty | 1 year (BARTEC) |
