BARTEC ET65EX2 Windows 5G Tablet with SE55 Scanner ATEX Zone 2/22
BARTEC ET65EX2 Windows 11 tablet for ATEX Zone 2/22 with 10.1" display, Intel Core Ultra 5, 5G and SE55 scanner.
- Renting and lease available
- Advice for your ATEX-challenge
- More than 30 years of experience
- On-site demo available

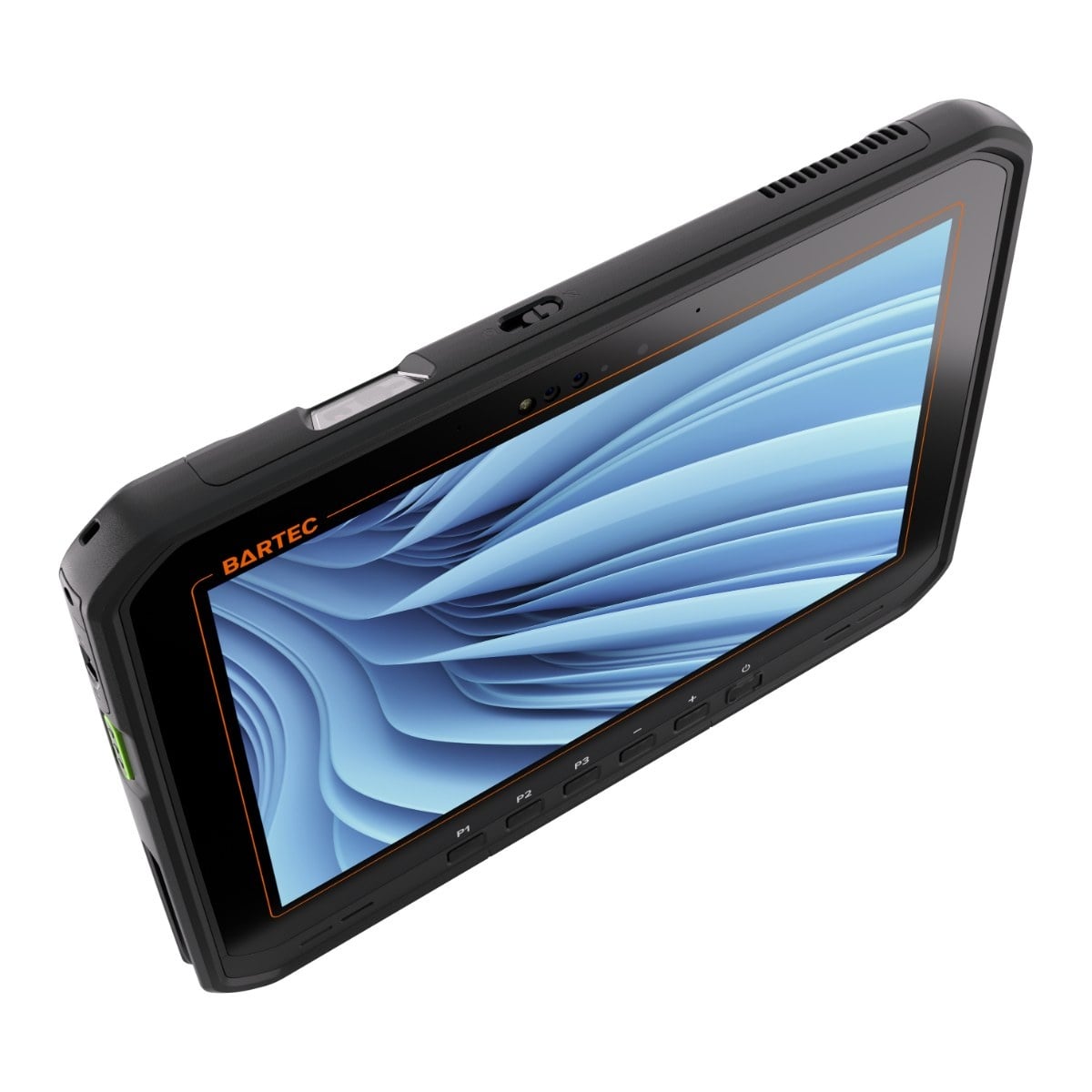

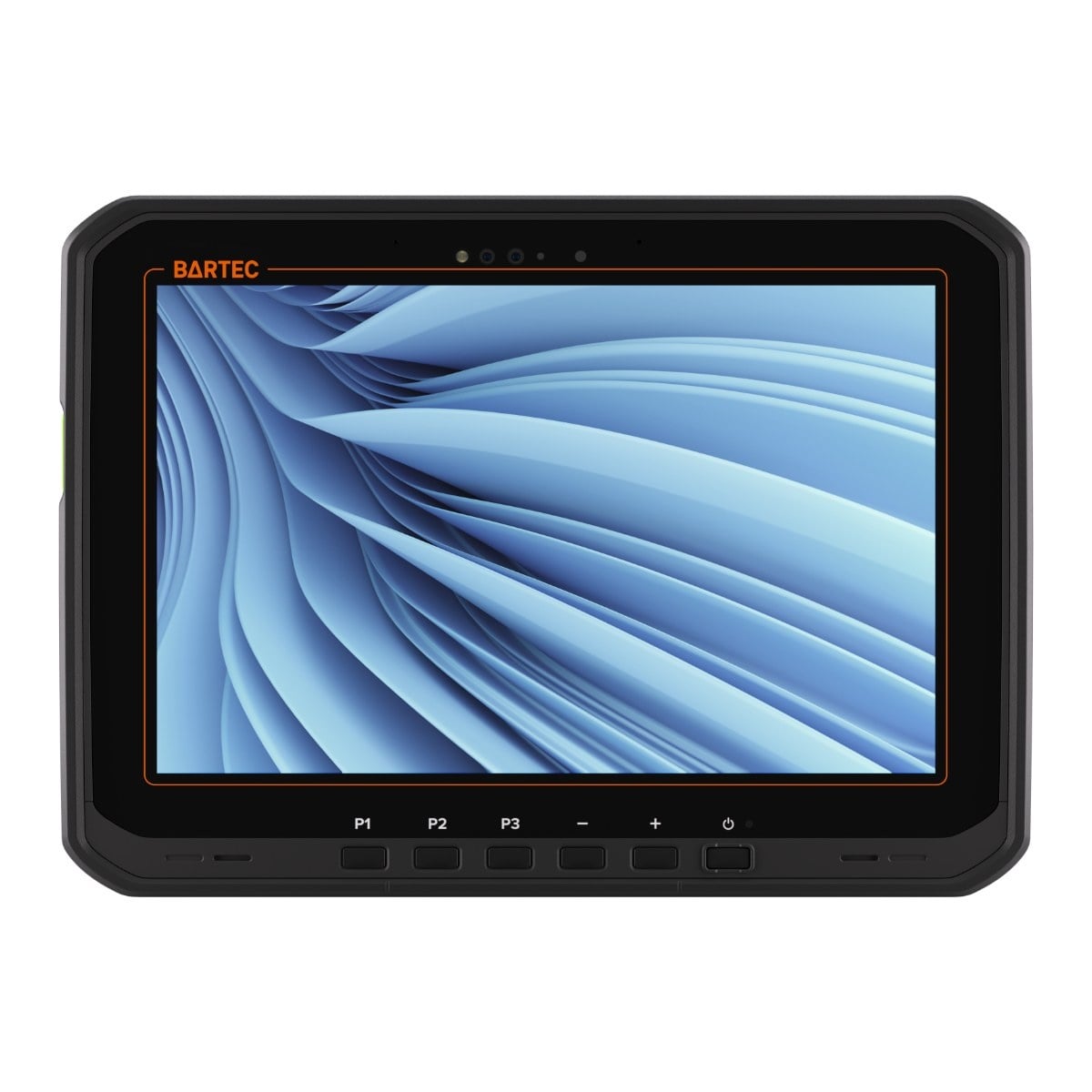

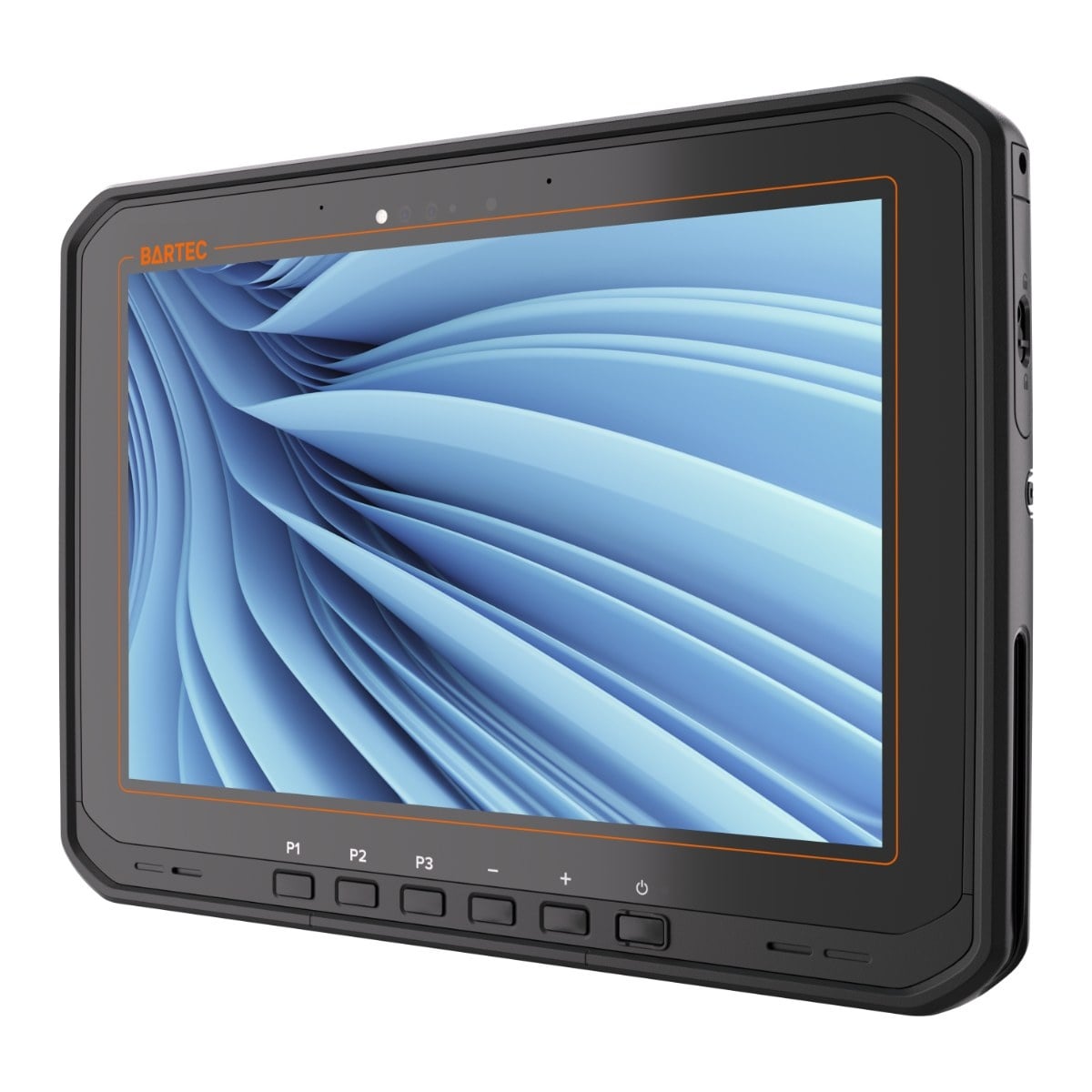

The BARTEC ET65EX2 Windows Tablet is a rugged 10.1-inch Windows 11 tablet for ATEX/IECEx Zone 2/22. BARTEC developed it together with Zebra Technologies for safe work in the energy, chemical and process industries.
With an Intel® Core™ Ultra 5 125U processor, 16 GB RAM and a 256 GB SSD it runs demanding Windows software, including AI applications, as smoothly as in the office. Windows 11 Pro fits straight into your existing IT environment and management.
The 1,000 nit Gorilla Glass display is readable in bright sunlight and works with a bare finger, a heavy glove or the included passive stylus, without changing settings. Even in the rain.
This model has a built-in Zebra SE55 Advanced Range scan engine that reads 1D and 2D barcodes from close up to 12.2 m. Besides Wi-Fi 7, the ET65EX2 adds 5G (nano SIM + eSIM, private 5G supported) and GNSS, for work beyond the company network.
The battery can be swapped in the field (outside the Ex zone); a super capacitor keeps the tablet running for at least 60 seconds during the swap. The tablet is IP66 rated, drop tested to 1.5 m on concrete (MIL-STD-810H) and offers facial recognition, TPM and a privacy shutter for the front camera.
Please note: Charging accessories are not included. Change the battery outside the hazardous area only; in the hazardous area the supplied screws for the I/O ports and battery must be tightened.
Technical specifications
| Specification | Value |
| ATEX marking | II 3G Ex ic op is IIC T4 Gc II 3D Ex ic op is IIIC T135 °C Dc IP 64 |
| ATEX certificate | EPS 26 ATEX 1 034 X |
| IECEx | Ex ic op is IIC T4 Gc / Ex ic op is IIIC T135 °C Dc IP 64 (IECEx EPS 26.0013X) |
| Zones | Zone 2 (gas) and Zone 22 (dust) |
| Part number | B7-T2E2-5WEC5DPSK000 |
| Processor | Intel® Core™ Ultra 5 125U |
| Memory / storage | 16 GB RAM / 256 GB SSD |
| Operating system | Windows® 11 Professional 64-bit |
| Display | 10.1" WUXGA, 1,000 nits, optically bonded, Corning Gorilla Glass, finger, glove or stylus input |
| Barcode scanner | Zebra SE55 1D/2D Advanced Range with IntelliFocus™, up to 12.2 m |
| Camera | Rear 13 MP autofocus with flash, front 5 MP with privacy shutter |
| Cellular | 5G / LTE / UMTS, 1 nano SIM and 1 eSIM, private 5G/LTE |
| Wireless | Wi-Fi 7 (802.11be), Bluetooth 5.4 (Class 1), NFC, GNSS |
| Ports | 1x USB 3.1 Type-A, 2x Thunderbolt 4 / USB4 Type-C, docking connector, 1x USB 2.0 (rear) |
| Battery | Li-ion 7.6 V / 4,460 mAh (33.9 Wh), true hot swap (min. 60 s), 0-100% in 2.5 hours with 45 W |
| Ingress protection | IP66 |
| Drop test | 1.5 m to concrete (exceeds MIL-STD-810H), 1.8 m to plywood over concrete |
| Operating temperature | -20 °C to +55 °C |
| Dimensions | 275 x 199 x 18.3 mm |
| Weight | 1,200 g (with battery) |
| Warranty | 1 year on the tablet, 6 months on battery and accessories |
Benefits
- ATEX/IECEx Zone 2/22
- Full Windows 11 Pro tablet
- Intel® Core™ Ultra 5, 16 GB RAM, 256 GB SSD
- 10.1" 1,000 nit display, readable in sunlight
- Works with glove, finger and stylus
- Built-in SE55 scanner up to 12.2 m
- 5G and Wi-Fi 7
- Swap batteries without shutting down (hot swap)
- IP66 and drop tested to MIL-STD-810H
- Facial recognition, TPM and privacy shutter
About BARTEC
BARTEC is a German specialist in explosion protection and has supplied equipment for hazardous areas for decades. For its mobile range BARTEC works with Zebra Technologies: proven Zebra technology, adapted and certified by BARTEC for ATEX zones. More information is available at bartec.com.
Package contents
- BARTEC ET65EX2 Windows Tablet
- Standard battery
- Stylus
- Screws for locking the I/O port and battery in hazardous areas
- Quick Start Guide
Contact us for a quote, availability or technical advice via +31 (0)115 648 506 or [email protected].
| ATEX Zone | Zone 2, Zone 22 |
| ATEX certification | EPS 26 ATEX 1 034 X |
| ATEX certification gas | II 3G Ex ic op is IIC T4 Gc |
| ATEX certification Dust | II 3D Ex ic op is IIIC T135 °C Dc IP 64 |
| ATEX certification mining | - |
| IECEx Certification | IECEx EPS 26.0013X |
| IECEx certification gas | Ex ic op is IIC T4 Gc |
| IECEx certification dust | Ex ic op is IIIC T135 °C Dc IP 64 |
| IECEx certification mining | - |
| Military standard MIL-STD-810 | MIL-STD-810H |
| Type of device | ATEX Tablet |
| Ingress Protection | IP66 |
| Operating system | Windows 11 Professional 64-bit |
| Processor | Intel Core Ultra 5 125U |
| Memory | 16 GB RAM, 256 GB SSD |
| Screensize | 10.1 inch |
| Display resolution | 1920 x 1200 (WUXGA) |
| Touchscreen | Corning Gorilla Glass, 1,000 nits, usable with finger, glove or stylus |
| Camera | 13 MP autofocus, front camera 5 MP |
| Mobile connectivity | 5G / LTE / UMTS |
| Frequencies | 5G NR, LTE-FDD, LTE-TDD, UMTS |
| Battery Capacity | 4,460 mAh, 7.6 V (hot swap) |
| Bluetooth | Bluetooth 5.4 |
| Wifi | Wi-Fi 7 (802.11be) |
| Barcode reader | SE55 1D/2D Advanced Range Scan Engine |
| GPS | Yes |
| Programmable keys | Yes |
| Height (mm) | 199 |
| Width (mm) | 275 |
| Thickness (mm) | 18,3 |
| Weight with batteries (gram) | 1.200 g |
| Factory warranty | 1 year (BARTEC) |
